# MEDIA VISION TECHNOLOGY, INC.
700-1127-01 (SA254S/111)
Card Type Sound card
Chipset Unidentified
Controller
I/O Options CD audio in, gain control, game/MIDI port, line
in, line/speaker out, microphone in, SCSI
interface, wavetable interface
Maximum DRAM N/A

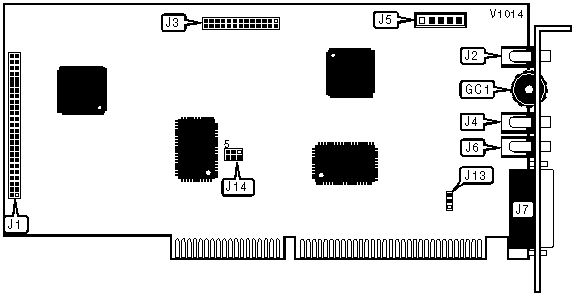

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|-------------------+----------+------------------+----------|
| Gain control | GC1 | Line/speaker out | J4 |
|-------------------+----------+------------------+----------|
| SCSI interface | J1 | CD audio in | J5 |
|-------------------+----------+------------------+----------|
| Line in | J2 | Mic in | J6 |
|-------------------+----------+------------------+----------|
| Wavetable | J3 | Game/MIDI port | J7 |
| interface | | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRQ SHARING CONFIGURATION |
|------------------------------------------------------------|
| Setting | J13 |
|----------------------------+-------------------------------|
| » | Disabled | Pins 2 & 3 closed |
|---+------------------------+-------------------------------|
| | Enabled | Pins 1 & 2 closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| ADDRESS SELECTION (PINS 5 & 6) |
|------------------------------------------------------------|
| Address | J14 |
|----------------------------------+-------------------------|
| » | 230h | Closed |
|---------+------------------------+-------------------------|
| | 330h | Open |
+------------------------------------------------------------+
+------------------------------------------------------------+
| FACTORY CONFIGURED - DO NOT ALTER |
|------------------------------------------------------------|
| Jumper | Position |
|----------------------------+-------------------------------|
| J14 | Pins 1 & 2, 3 & 4 open |
+------------------------------------------------------------+
