# MEDIA VISION TECHNOLOGY, INC.
GETTING STARTED(SANYO 94A/123)
Card Type Sound card
Chipset Media Vision
Controller
I/O Options CD-ROM audio in (3), CD-ROM interface (3),
game/MIDI port, line in, line out, microphone,
wavetable connector
Maximum DRAM N/A

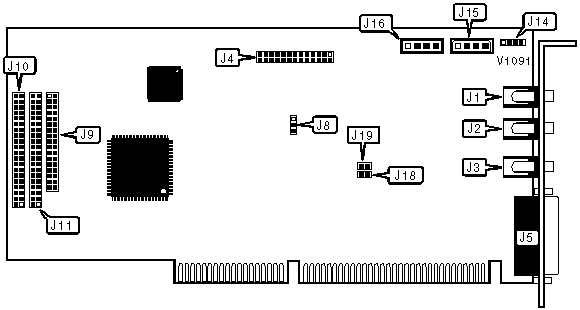

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|-----------------+----------+--------------------+----------|
| Line in | J1 | Mitsumi CD-ROM | J10 |
| | | interface | |
|-----------------+----------+--------------------+----------|
| Mic in | J2 | Panasonic CD-ROM | J11 |
| | | interface | |
|-----------------+----------+--------------------+----------|
| Line out | J3 | Sony CD - audio in | J14 |
|-----------------+----------+--------------------+----------|
| Wavetable | J4 | Panasonic CD - | J15 |
| connector | | audio in | |
|-----------------+----------+--------------------+----------|
| Game/MIDI port | J5 | Mitsumi CD - audio | J16 |
| | | in | |
|-----------------+----------+--------------------+----------|
| Sony CD-ROM | J9 | | |
| interface | | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DMA SHARING CONFIGURATION |
|------------------------------------------------------------|
| Setting | J8 |
|------------------------------+-----------------------------|
| » | No DMA sharing | Pins 2 & 3 closed |
|---+--------------------------+-----------------------------|
| | DMA sharing | Pins 1 & 2 closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| MPU 401 CONFIGURATION |
|------------------------------------------------------------|
| Setting | J18 |
|---------------------------------+--------------------------|
| » | Enabled | Open |
|---+-----------------------------+--------------------------|
| | Disabled | Closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| GAME PORT CONFIGURATION |
|------------------------------------------------------------|
| Setting | J19 |
|----------------------------------+-------------------------|
| » | Enabled | Open |
|----+-----------------------------+-------------------------|
| | Disabled | Closed |
+------------------------------------------------------------+
