# NEC TECHNOLOGIES, INC.
APC-H250K
Card Type Memory
Chipset Unidentified
Maximum Onboard Memory 3MB DRAM
Data Bus Proprietary
IMG IMG 1
+------------------------------------------------------------+

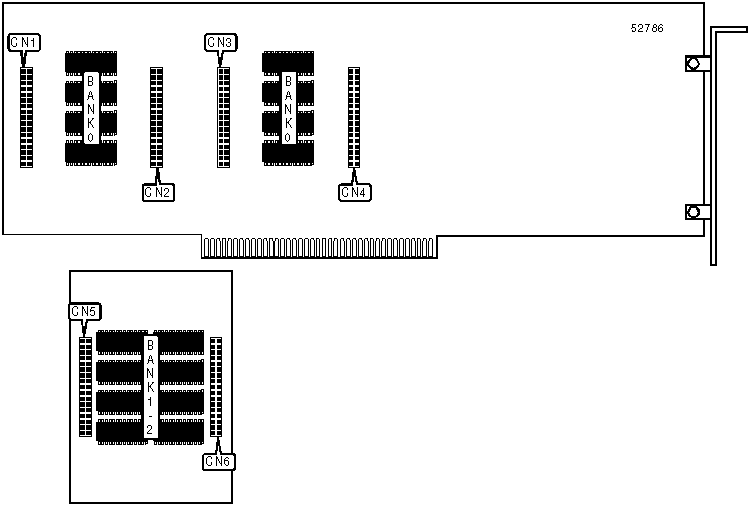

| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|------------------------+-------+-------------------+-------|
| Header for Bank 2 | CN1 | Header for Bank 1 | CN4 |
| module | | module | |
|------------------------+-------+-------------------+-------|
| Header for Bank 2 | CN2 | Header to main | CN5 |
| module | | board | |
|------------------------+-------+-------------------+-------|
| Header for Bank 1 | CN3 | Header to main | CN6 |
| module | | board | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 | Bank 2 |
|------------+---------------+---------------+---------------|
| 1MB | (8) 128KB | None | None |
|------------+---------------+---------------+---------------|
| 2MB | (8) 128KB | (8) 128KB | None |
|------------+---------------+---------------+---------------|
| 3MB | (8) 128KB | (8) 128KB | (8) 128KB |
+------------------------------------------------------------+
