       # MITSUMI ELECTRONICS COROPORATION

          MOZART SOUND CARD

          Card Type       Sound card
          Chip Set        Unidentified
          Maximum Onboard N/A
          Memory
          I/O Options     CD ROM Audio in, IDE CD-ROM interface, Mitsumi
                          CD-ROM interface, Line in, Line out,
                          Microphone in, MIDI/Game port, Speaker out
          Data Bus        16-bit ISA


   IMG IMG 1


          +------------------------------------------------------------+

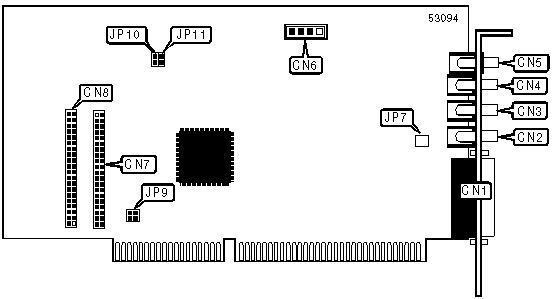

          |                        CONNECTIONS                         |
          |------------------------------------------------------------|
          |    Function     | Label |         Function         | Label |
          |-----------------+-------+--------------------------+-------|
          | Game/MIDI port  |  CN1  | CD-ROM audio             |  CN6  |
          |-----------------+-------+--------------------------+-------|
          | Microphone in   |  CN2  | Mitsumi CD-ROM interface |  CN7  |
          |-----------------+-------+--------------------------+-------|
          | Line in         |  CN3  | IDE CD-ROM interface     |  CN8  |
          |-----------------+-------+--------------------------+-------|
          | Line out        |  CN4  |                          |       |
          |-----------------+-------+--------------------------+-------|
          | Speaker out     |  CN5  |                          |       |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                 USER CONFIGURABLE SETTINGS                 |
          |------------------------------------------------------------|
          |              Function              | Label |   Position    |
          |------------------------------------+-------+---------------|
          | » | Powered microphone is in use   |  JP7  |    Closed     |
          |---+--------------------------------+-------+---------------|
          |   | Dynamic microphone is in use   |  JP7  |     Open      |
          |---+--------------------------------+-------+---------------|
          | » | CD-ROM termination             |  JP9  | Unidentified  |
          |   | enable/disable                 |       |               |
          |------------------------------------------------------------|
          | Note: JP9 is CD-ROM termination jumper. Exact setting is   |
          | unidentified.                                              |
          |                                                            |
          | Size and orientation of JP7 is unidentified.               |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |              OPL4 DAUGHTER CARD CONFIGURATION              |
          |------------------------------------------------------------|
          |        Setting         |      JP10       |      JP11       |
          |------------------------+-----------------+-----------------|
          | » |   Not installed    |     Closed      |     Closed      |
          |---+--------------------+-----------------+-----------------|
          |   |     Installed      |      Open       |      Open       |
          +------------------------------------------------------------+
