# MEDIA VISION TECHNOLOGY, INC.
MV 4000 PREMIUM 3D SCSI 2 (650-0111-01)
Card Type Sound card
Chip Set Unidentified
Maximum Onboard Unidentified
Memory
I/O Options Game/MIDI port, microphone in, speaker out,
line in, wavetable, audio in, SCSI interface
Data Bus 16-bit ISA

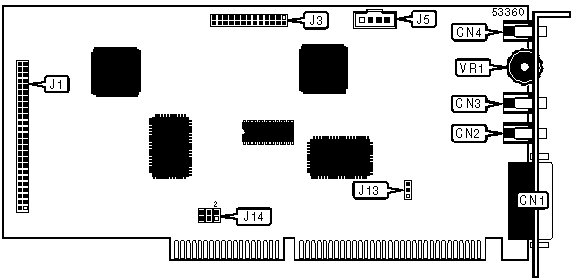

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|-------------------+-------+------------------------+-------|
| Game/MIDI port | CN1 | 50-pin SCSI connector | J1 |
|-------------------+-------+------------------------+-------|
| Microphone in | CN2 | Wavetable connector | J3 |
|-------------------+-------+------------------------+-------|
| Speaker out | CN3 | Audio in - CD-ROM | J5 |
|-------------------+-------+------------------------+-------|
| Line in | CN4 | Volume control | VR1 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Label | Position |
|------------------------------------+----------+------------|
| » | DMA sharing - enabled | J13 | Pins 1 & 2 |
| | | | closed |
|---+--------------------------------+----------+------------|
| | DMA sharing - disabled | J13 | Pins 2 & 3 |
| | | | closed |
|---+--------------------------------+----------+------------|
| » | Factory configured - do not | J14/pins | Open |
| | alter | 1 & 2 | |
|---+--------------------------------+----------+------------|
| » | Factory configured - do not | J14/pins | Open |
| | alter (0 wait state) | 3 & 4 | |
|---+--------------------------------+----------+------------|
| » | Base I/O address 230h enabled | J14/pins | Closed |
| | | 5 & 6 | |
|---+--------------------------------+----------+------------|
| | Base I/O address 330h enabled | J14/pins | Open |
| | | 5 & 6 | |
+------------------------------------------------------------+
