# MIRO COMPUTER PRODUCTS, INC.
MIROSOUND FM10
Card Type Sound card
Chip Set Yamaha
Maximum Onboard Unidentified
Memory
I/O Options CD-ROM audio interface, game port, IDE
interface, wave table interface, microphone,
audio line in, speaker
Data Bus 16-bit ISA

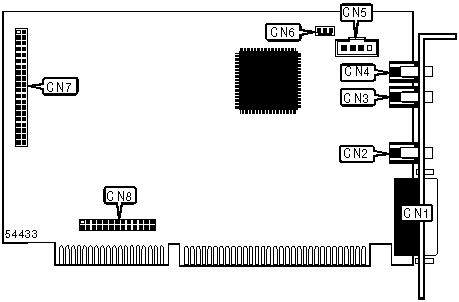

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|----------------------+-------+---------------------+-------|
| Game/MIDI connector | CN1 | CD-ROM audio | CN5 |
| | | connector (Sony) | |
|----------------------+-------+---------------------+-------|
| Speaker connector | CN2 | Line-in connector | CN6 |
|----------------------+-------+---------------------+-------|
| Audio input | CN3 | IDE connector | CN7 |
|----------------------+-------+---------------------+-------|
| Microphone connector | CN4 | Wave table | CN8 |
| | | connector | |
+------------------------------------------------------------+
