# MOXA TECHNOLOGIES CO., LTD
C102H, C102HI, C102HIS, C102P
Card Type Serial controller
Chip Set Unidentified
I/O Options Serial ports (2 RS-422/485)
Data Bus 16-bit ISA (EISA compatible)
Card Size Full-height, Half-length card

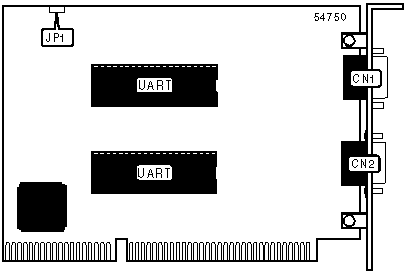

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|----------------------+-------+---------------------+-------|
| Serial Port 1 | CN1 | Serial Port 2 | CN2 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Label | Position |
|----------------------------------------+-------+-----------|
| ยป | CAP address 0x180 enabled | JP1 | Open |
|----+-----------------------------------+-------+-----------|
| | CAP address 0x180 disabled | JP1 | Closed |
|------------------------------------------------------------|
| Note: When disabled CAP address is forced to 0xA700 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| MISCELLANEOUS TECHNICAL NOTES |
|------------------------------------------------------------|
| Note: Base I/O address and IRQ settings are configured via |
| software written to EEPROM. Normally the default settings |
| should be used unless another device cannot be configured |
| to an address other than 0x180. If JP1 is shorted this |
| will force the Configuration Access Port (CAP) to address |
| 0xA700. |
+------------------------------------------------------------+
