# MEDIAFORTE PRODUCTS PTE, LTD.
SF64-PCE2
Card Type Sound card
Chip Set ESS
Maximum Onboard Unidentified
Memory
I/O Options Game/MIDI port, microphone in (2), line in,
speaker/line out (2), audio in - CD-ROM, TAD
connector, PC speaker connector, auxilary in,
master volume control in
Data Bus 32-bit PCI
Card Size Half-length, full height

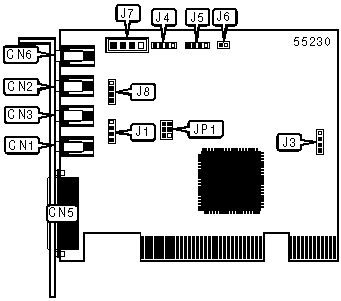

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|-----------------------+-------+--------------------+-------|
| Speaker/line out - | CN1 | Master Volume | J3 |
| external | | Control in | |
|-----------------------+-------+--------------------+-------|
| Line in | CN2 | Auxiliary in | J4 |
|-----------------------+-------+--------------------+-------|
| Microphone in - | CN3 | TAD connector | J5 |
| external | | | |
|-----------------------+-------+--------------------+-------|
| Game/MIDI port | CN5 | PC speaker | J6 |
| | | connector | |
|-----------------------+-------+--------------------+-------|
| Antenna | CN6 | Audio in - CD-ROM | J7 |
|-----------------------+-------+--------------------+-------|
| Speaker/line out - | J1 | Microphone in - | J8 |
| internal | | internal | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Label | Position |
|--------------------------+-------+-------------------------|
| ยป | Output via amplifier | JP1 | Pins 1 & 3, 2 & 4 |
| | | | closed |
|---+----------------------+-------+-------------------------|
| | Output via Line-Out | JP1 | Pins 3 & 5, 4 & 6 |
| | | | closed |
+------------------------------------------------------------+
