# MOTOROLA, INC.
MPMC101
Card Type Digital I/O card
I/O Options SCSI-2 connector
Hard Drives supported Up to 15 SCSI-2 Fast/Wide devices
Data Bus PCI Mezzanine

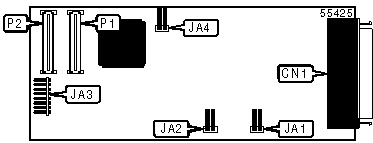

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|-----------------------+-------+--------------------+-------|
| SCSI-2 connector | CN1 | PCI mezzanine card | P2 |
| | | connector | |
|-----------------------+-------+--------------------+-------|
| PCI mezzanine card | P1 | | |
| connector | | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Label | Position |
|-----------------------------------------+-------+----------|
| ?? Card supplies terminal power to SCSI | JA1 | Closed |
| bus | | |
|-----------------------------------------+-------+----------|
| Card does not supply terminal power to | JA1 | Open |
| SCSI bus | | |
|-----------------------------------------+-------+----------|
| ? Card is first or last device on SCSI | JA2 | Closed |
| bus | | |
|-----------------------------------------+-------+----------|
| Card is not first or last device on | JA2 | Open |
| SCSI bus | | |
|-----------------------------------------+-------+----------|
| ? Factory configured - do not alter | JA3 | Open |
|-----------------------------------------+-------+----------|
| ? Little endian mode enabled | JA4 | Open |
|-----------------------------------------+-------+----------|
| Big endian mode enabled | JA4 | Closed |
+------------------------------------------------------------+
+--------------------------------------------------+
| MISCELLANEOUS TECHNICAL NOTES |
|--------------------------------------------------|
| MPMC101 supports single-ended SCSI-2 connections |
+--------------------------------------------------+
