# QUATECH, INC.
RW-100T
Card Type I/O controller
Chipset/Controller Unidentified UART
I/O Options Serial ports (2)
Maximum DRAM N/A
IMG IMG 1
+------------------------------------------------------------+

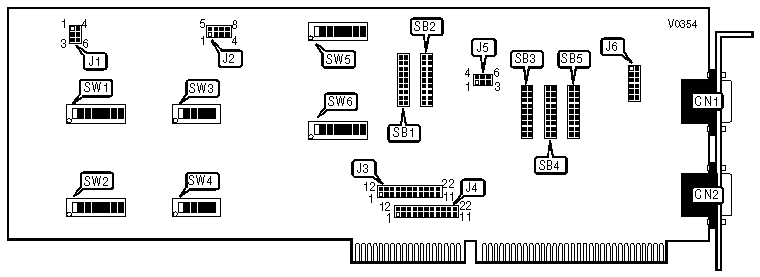

| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|-------------------+----------+------------------+----------|
| Serial port 1 | CN1 | Serial port 2 | CN2 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CLOCK SPEED SELECT |
|------------------------------------------------------------|
| Speed | J1 |
|--------------------------+---------------------------------|
| » | 18.432 | Pins 2 & 5 closed |
|---+----------------------+---------------------------------|
| | 9.216 | Pins 1 & 2, 5 & 6 closed |
|---+----------------------+---------------------------------|
| | 3.6864 | Pins 2 & 3, 4 & 5 closed |
|---+----------------------+---------------------------------|
| | 1.8432 | Pins 1 & 2, 3 & 6, 4 & 5 closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| PRIMARY PORT I/O ADDRESS SELECT |
|------------------------------------------------------------|
| Address | SW1 | SW3 |
|--------------+-----------------------+---------------------|
| » | 03F8h | 1 & 2, 3 & 4, 5 & 6 | 6 on |
| | | on | |
|----+---------+-----------------------+---------------------|
| | 03E8h | 1 & 2, 3 & 4, 5 & 6 | 4 & 6 on |
| | | on | |
|----+---------+-----------------------+---------------------|
| | 3220h | 1 & 2, 5 & 6, 8 on | 1 & 2, 4 & 5, 6 on |
|------------------------------------------------------------|
| Note:The address range for the RW-100T is from 0 to |
| FFFFh. The switches are a binary representation of the |
| addresses. The switches have the following decimal |
| values: SW1/1=8, SW1/2=4, SW1/3=2, SW1/4=1, SW1/5=8, |
| SW1/6=4, SW1/7=2, SW1/8=1, SW3/1=8, SW3/2=4, SW3/3=2, |
| SW3/4=1, SW3/5=8. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| SECONDARY PORT I/O ADDRESS SELECT |
|------------------------------------------------------------|
| Address | SW2 | SW4 |
|--------------+-------------------------+-------------------|
| » | 02F8h | 1 & 2, 3 & 4, 5 &6, 8 | 6 on |
| | | on | |
|----+---------+-------------------------+-------------------|
| | 02E8h | 1 & 2, 3 & 4, 5 & 6, 8 | 4 & 6 on |
| | | on | |
|----+---------+-------------------------+-------------------|
| | 5228h | 1 & 3, 5 & 6, 8 on | 1 & 2, 4 & 6 on |
|------------------------------------------------------------|
| Note:The address range for the RW-100T is from 0 to |
| FFFFh. The switches are a binary representations of the |
| addresses. The switches have the following decimal |
| values: SW2/1=8, SW2/2=4, SW2/3=2, SW2/4=1, SW2/5=8, |
| SW2/6=4, SW2/7=2, SW2/8=1, SW4/1=8, SW4/2=4, SW4/3=2, |
| SW4/4=1, SW4/5=8. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| INTERRUPT SELECT |
|------------------------------------------------------------|
| IRQ | J3 (Port 1) | J4 (Port 2) |
|----------------+---------------------+---------------------|
| IRQ2 | Pins 1 & 12 closed | Pins 1 & 12 closed |
|----------------+---------------------+---------------------|
| IRQ3 | Pins 2 & 13 closed | Pins 2 & 13 closed |
|----------------+---------------------+---------------------|
| IRQ4 | Pins 3 & 14 closed | Pins 3 & 14 closed |
|----------------+---------------------+---------------------|
| IRQ5 | Pins 4 & 15 closed | Pins 4 & 15 closed |
|----------------+---------------------+---------------------|
| IRQ6 | Pins 5 & 16 closed | Pins 5 & 16 closed |
|----------------+---------------------+---------------------|
| IRQ7 | Pins 6 & 17 closed | Pins 6 & 17 closed |
|----------------+---------------------+---------------------|
| IRQ10 | Pins 7 & 18 closed | Pins 7 & 18 closed |
|----------------+---------------------+---------------------|
| IRQ11 | Pins 8 & 19 closed | Pins 8 & 19 closed |
|----------------+---------------------+---------------------|
| IRQ12 | Pins 9 & 20 closed | Pins 9 & 20 closed |
|----------------+---------------------+---------------------|
| IRQ14 | Pins 10 & 21 closed | Pins 10 & 21 closed |
|----------------+---------------------+---------------------|
| IRQ15 | Pins 11 & 22 closed | Pins 11 & 22 closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| SECONDARY SERIAL PORT OUTPUT CONFIGURATION |
|------------------------------------------------------------|
| Output | Protocol Selectors Installed |
|----------------------+-------------------------------------|
| RS-232C DTE | SB1 & SB4 |
|----------------------+-------------------------------------|
| RS-232C DCE | SB1 & SB5 |
|----------------------+-------------------------------------|
| RS-485 | SB2 & SB3 |
|------------------------------------------------------------|
| Note:These settings are valid only when no protocol |
| selectors are installed on any jumpers other than those |
| indicated. Incorrect combinations of these selectors may |
| result in card or system damage. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| PRIMARY SERIAL PORT DTE/DCE CONFIGURATION |
|------------------------------------------------------------|
| Serial Port CN1 |
|------------------------------------------------------------|
| Jumper J6 |
| |
IMG IMG 2
| |
+------------------------------------------------------------+
+------------------------------------------------------------+
| SECONDARY SERIAL PORT DTE/DCE CONFIGURATION |
|------------------------------------------------------------|
| Serial Port CN2 |
|------------------------------------------------------------|
| Jumpers SB1 - SB5 |
| |
IMG IMG 3
| |
+------------------------------------------------------------+
+------------------------------------------------------------+
| AUXILIARY I/O CONFIGURATION |
|------------------------------------------------------------|
| Function | J5 |
|---------------------------------+--------------------------|
| RTS/CTS loopback | Pins 3 & 6 closed |
|---------------------------------+--------------------------|
| Transmit RTS | Pins 2 & 3 closed |
|---------------------------------+--------------------------|
| Receive CTS | Pins 5 & 6 closed |
|---------------------------------+--------------------------|
| RCLK/XCLK loopback | Pins 1 & 4 closed |
|---------------------------------+--------------------------|
| Transmit XCLK | Pins 1 & 2 closed |
|---------------------------------+--------------------------|
| Receive RCLK | Pins 4 & 5 closed |
|---------------------------------+--------------------------|
| AUX out/AUX in loopback | Pins 2 & 5 closed |
|------------------------------------------------------------|
| Note: The default setting for J5 is to have Pins 1 & 4, 2 |
| & 5, and 3 & 6 closed. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| HARDWARE OPTION SWITCH CONFIGURATION |
|------------------------------------------------------------|
| Setting | J2 |
|----------------------------------------+-------------------|
| SW5 enabled for hardware option select | Pins 1 & 5 closed |
| for Port 1 | |
|----------------------------------------+-------------------|
| SW6 enabled for hardware option select | Pins 2 & 5 closed |
| for Port 2 | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| TRI-STATE OUTPUT CONFIGURATION |
|------------------------------------------------------------|
| Setting | J2 |
|-------------------------------+----------------------------|
| Tri-state enabled for Port 1 | Pins 3 & 7 closed |
|-------------------------------+----------------------------|
| Tri-state enabled for Port 2 | Pins 4 & 8 closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER DEFINABLE HARDWARE OPTION CONFIGURATION |
|------------------------------------------------------------|
| Address | SW5 | SW6 |
|--------------+-----------------------+---------------------|
| 6Ah | 2 & 3, 5 &7 on | 2 & 3, 5 &7 on |
|--------------+-----------------------+---------------------|
| B4h | 1 & 3, 4 & 6 on | 1 & 3, 4 & 6 on |
|------------------------------------------------------------|
| Note:These switches are a binary representation of the |
| addresses. The switches have the following decimal |
| values: switch 1=8, switch 2=4, switch 3=2, switch 4=1, |
| switch 5=8, switch 6=4, switch 7=2, switch 8=1. |
+------------------------------------------------------------+
