# RESEARCH IN MOTION LIMITED
MX25
Card Type X.25 PAD
Chip Set Unidentified
I/O Options Printer/diagnostic port
Transfer Rate 19.2Kbps
Data Bus External
IMG IMG 1
+------------------------------------------------------------+

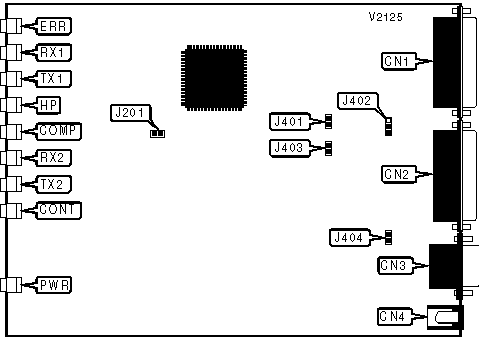

| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|-----------------------+-------+--------------------+-------|
| RS-232 X.25 to DTE | CN1 | Diagnostic/printer | CN3 |
| | | port | |
|-----------------------+-------+--------------------+-------|
| RS-232 to X.25 | CN2 | DC power | CN4 |
| network transmission | | | |
| device | | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Setting | Label | Position |
|-----------------------------------------+-------+----------|
| » | Hardware flow control is not being | J401 | Open |
| | used | | |
|---+-------------------------------------+-------+----------|
| | Hardware flow control is being used | J401 | Closed |
|---+-------------------------------------+-------+----------|
| » | Factory configured - do not alter | J201 | Open |
|---+-------------------------------------+-------+----------|
| » | Factory configured - do not alter | J402 | Open |
|---+-------------------------------------+-------+----------|
| » | Factory configured - do not alter | J403 | Open |
|---+-------------------------------------+-------+----------|
| » | Factory configured - do not alter | J404 | Open |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIAGNOSTIC LED(S) |
|------------------------------------------------------------|
| LED | Color | Status | Condition |
|------+-------+--------+------------------------------------|
| ERR | Red | On | A fatal error has occurred (after |
| | | | initial start-up) |
|------+-------+--------+------------------------------------|
| ERR | Red | Off | A fatal error has not occurred |
|------+-------+--------+------------------------------------|
| RX1 | Red | On | PAD is receiving data from DTE |
|------+-------+--------+------------------------------------|
| RX1 | Red | Off | PAD is not receiving data from DTE |
|------+-------+--------+------------------------------------|
| TX1 | Red | On | PAD is transmitting data to DTE |
|------+-------+--------+------------------------------------|
| TX1 | Red | Off | PAD is not transmitting data to |
| | | | DTE |
|------+-------+--------+------------------------------------|
| HP | Red | On | PAD is waiting for an incoming |
| | | | call |
|------+-------+--------+------------------------------------|
| HP | Red | Off | PAD is busy and not waiting for an |
| | | | incoming call |
|------+-------+--------+------------------------------------|
| COMP | Red | On | X.25 link to network is good |
|------+-------+--------+------------------------------------|
| COMP | Red | Off | X.25 link to network is not good |
|------+-------+--------+------------------------------------|
| RX2 | Red | On | PAD is receiving data from network |
|------+-------+--------+------------------------------------|
| RX2 | Red | Off | PAD is not receiving data from |
| | | | network |
|------+-------+--------+------------------------------------|
| TX2 | Red | On | PAD is transmitting data to |
| | | | network |
|------+-------+--------+------------------------------------|
| TX2 | Red | Off | PAD is not transmitting data to |
| | | | network |
|------+-------+--------+------------------------------------|
| CONT | Red | On | X.25 call has connected |
|------+-------+--------+------------------------------------|
| CONT | Red | Off | No X.25 call has connected |
|------+-------+--------+------------------------------------|
| PWR | Red | On | Power is on |
|------+-------+--------+------------------------------------|
| PWR | Red | Off | Power is off |
|------------------------------------------------------------|
| Note:LEDs will blink during self-test sequence. |
+------------------------------------------------------------+
