# REVEAL COMPUTER PRODUCTS
WAVEXTREME 32, WAVEXTREME 32 PRO
Card Type Sound card
Chip Set Unidentified
I/O Options CD-ROM interface, Game/MIDI port, Line in (2),
Microphone jack, Speaker/Line out
Data Bus 16-bit ISA
Card Size Half-length, full-height card

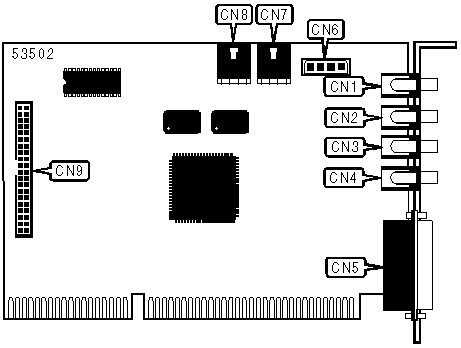

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|---------------------+-------+----------------------+-------|
| Auxiliary line in | CN1 | CD-Audio in | CN6 |
| | | (Panasonic) | |
|---------------------+-------+----------------------+-------|
| Line in | CN2 | CD-Audio in (IDE) | CN7 |
|---------------------+-------+----------------------+-------|
| Microphone in | CN3 | CD-Audio in (IDE) | CN8 |
|---------------------+-------+----------------------+-------|
| Speaker/Line out | CN4 | IDE CD-ROM interface | CN9 |
|---------------------+-------+----------------------+-------|
| Game/MIDI connector | CN5 | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Note: All settings are software configurable. |
+------------------------------------------------------------+
