# PROSIDE CORPORATION
PRS-MP3600/PCI
Card Type Sound/Modem/Video card
Video Chip Set Proprietary
Maximum Video Memory 2MB RDRAM
Video Types Supported Unidentified
Highest Resolution Unidentified
Supported
I/O Options Game port, VGA port, microphone in,
line in, line out, telephone, modem
port, TV tuner board, PC speaker out,
Audio in - CD-ROM, multimedia connector
Maximum Modem Rate 33.6Kbps
Maximum Fax Rate 14.4Kbps
Data Modulation Bell 103A/212A
Protocol
ITU-T V.21, V.22, V.22bis, V.23, V.32,
V.32bis, V.34
Fax Modulation ITU-T V.17, V.21CH2, V.27ter, V.29
Protocol
Error MNP5, V.42, V.42bis
Correction/Compression
Fax Class Unidentified
Data Bus 32-bit PCI

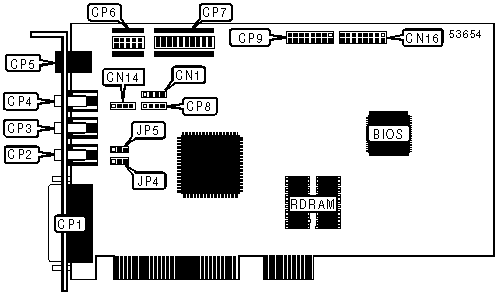

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Location | Function | Location |
|--------------------+----------+-----------------+----------|
| PC speaker out | CN1 | Line out | CP4 |
|--------------------+----------+-----------------+----------|
| Audio in - CD-ROM | CN14 | RJ-11 telephone | CP5 |
| | | jack | |
|--------------------+----------+-----------------+----------|
| Multimedia | CN16 | Modem port | CP6 |
| connector | | | |
|--------------------+----------+-----------------+----------|
| 15-pin analog | CP1 | TV tuner board | CP7 |
| video port | | connector | |
|--------------------+----------+-----------------+----------|
| Microphone jack | CP2 | Unidentified | CP8 |
|--------------------+----------+-----------------+----------|
| Line in | CP3 | Game port | CP9 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| MICROPHONE/HEADSET CONFIGURATION |
|------------------------------------------------------------|
| Function | JP4 | JP5 |
|-----------------------------------+-----------+------------|
| ยป | R: Microphone in, L: | Pins 2 & | Pins 1 & 2 |
| | Microphone in | 3 closed | closed |
|---+-------------------------------+-----------+------------|
| | R: Microphone in, L: Speaker | Pins 1 & | Pins 1 & 2 |
| | out | 2 closed | closed |
|---+-------------------------------+-----------+------------|
| | R: Speaker out, L: Microphone | Pins 2 & | Pins 2 & 3 |
| | in | 3 closed | closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| SUPPORTED COMMAND SET |
|------------------------------------------------------------|
| Note: Command Set is unidentified. |
+------------------------------------------------------------+
