       # REVEAL COMPUTER PRODUCTS

          4XCD-ROM DRIVE CARD

          Card Type               CD-ROM drive controller card
          CD-ROM Drives supported Reveal 4xCD-ROM
          Data Bus                16-bit ISA
          Card Size               Half-length, half-height card

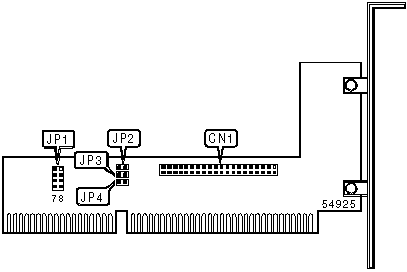

   IMG IMG 1


          +------------------------------------------------------------+
          |                        CONNECTIONS                         |
          |------------------------------------------------------------|
          |           Function            |          Location          |
          |-------------------------------+----------------------------|
          |       CD-ROM interface        |            CN1             |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                 USER CONFIGURABLE SETTINGS                 |
          |------------------------------------------------------------|
          |                Function                | Label | Position  |
          |----------------------------------------+-------+-----------|
          | » | Factory configured - do not alter  |  JP1  | Pins 1 &  |
          |   | (IRQ Select)                       |       | 2 closed  |
          |---+------------------------------------+-------+-----------|
          | » | Factory configured - do not alter  |  JP2  |  Closed   |
          |   | (I/O Channel Ready Select)         |       |           |
          |---+------------------------------------+-------+-----------|
          | » | Factory configured - do not alter  |  JP3  |  Closed   |
          |   | (I/O Base Address Select)          |       |           |
          |---+------------------------------------+-------+-----------|
          | » | Factory configured - do not alter  |  JP4  |   Open    |
          |   | (I/O Base Address Select)          |       |           |
          +------------------------------------------------------------+
