# PATTON ELECTRONICS COMPANY
2016
Card Type Interface Converter
Chip Set Unidentified
I/O Options 15-pin X.21 serial port, V.35 DTE interface
via 34-pin connector
Wiring Type Unshielded twisted pair
Maximum Data Rate 2.048Mbps
Data Bus External
IMG IMG 1
+------------------------------------------------------------+

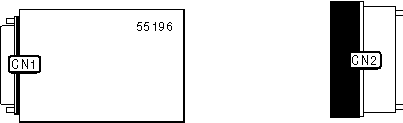

| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|--------------------+-------+-----------------------+-------|
| 15-pin serial port | CN1 | V.35 interface | CN2 |
| | | (34-pin connector) | |
+------------------------------------------------------------+
