# PATTON ELECTRONICS COMPANY
2014
Card Type Interface Converter
Chip Set Unidentified
I/O Options 25-pin serial port (RS-530), V.35 DTE
interface via 34-pin connector
Wiring Type Unshielded twisted pair
Maximum Data Rate 2.048Mbps
Data Bus External
IMG IMG 1
+------------------------------------------------------------+

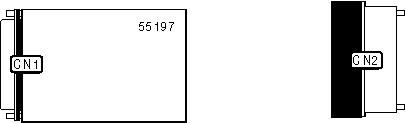

| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|--------------------+-------+-----------------------+-------|
| 25-pin serial port | CN1 | V.35 interface | CN2 |
| | | (34-pin connector) | |
+------------------------------------------------------------+
