# STB SYSTEMS, INC.
HORIZON+ PCI
Card Type Video card
Video Chip Set Cirrus Logic
Highest Resolution Supported 1280 x 1024
Maximum Video Memory 1MB DRAM
Data Bus 32-bit PCI
Video Types Supported XVGA
IMG IMG 1
+------------------------------------------------------------+

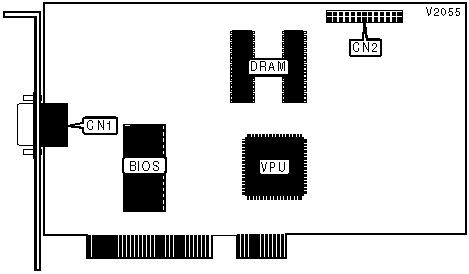

| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|---------------------+-------+----------------------+-------|
| 15-pin analog video | CN1 | VESA feature | CN2 |
| port | | connector | |
+------------------------------------------------------------+
