       # TELEVIDEO SYSTEMS, INC.

          TELESOUND 3D

          Card Type   Sound card
          Chip Set    Opti
          I/O Options CD-ROM interface, Game/Midi port, Wavetable,
                      Microphone, Line in, Speaker/Line out, CD-Audio in
          Data Bus    16-bit ISA
          Card Size   Half-length, full-height card,

   IMG IMG 1


          +------------------------------------------------------------+

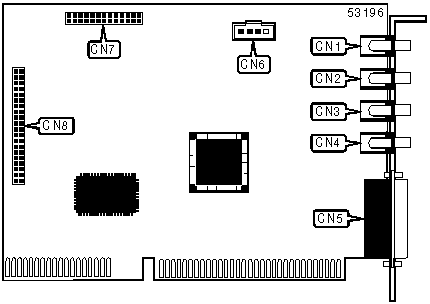

          |                        CONNECTIONS                         |
          |------------------------------------------------------------|
          |     Function      | Label |        Function        | Label |
          |-------------------+-------+------------------------+-------|
          | Speaker/Line out  |  CN1  | Game/MIDI port         |  CN5  |
          |-------------------+-------+------------------------+-------|
          | Line in           |  CN2  | Audio in - CD-ROM      |  CN6  |
          |-------------------+-------+------------------------+-------|
          | Microphone in     |  CN3  | Wavetable connector    |  CN7  |
          |-------------------+-------+------------------------+-------|
          | Speaker out       |  CN4  | CD-ROM ATAPI interface |  CN8  |
          +------------------------------------------------------------+
