# SHARK MULTIMEDIA
MAKO PLUS 32
Card Type Sound card
Chip Set Unidentified
I/O Options CD-ROM interface, Game/MIDI port, Microphone (2),
Speaker/Line out, Line in (2), CD Audio (2)
Data Bus 16-bit ISA
Card Size Half-length, full-height card

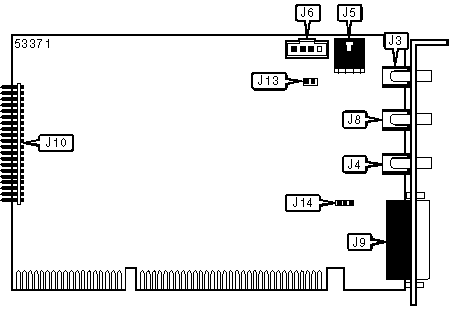

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|-------------------+-------+------------------------+-------|
| Line in | J3 | Game/MIDI connector | J9 |
|-------------------+-------+------------------------+-------|
| Microphone jack | J4 | CD-ROM interface | J10 |
| | | (unidentified) | |
|-------------------+-------+------------------------+-------|
| Audio in CD-ROM | J5 | Line in (internal) | J13 |
| (unidentified) | | | |
|-------------------+-------+------------------------+-------|
| Audio in CD-ROM | J6 | Microphone (internal) | J14 |
| (unidentified) | | | |
|-------------------+-------+------------------------+-------|
| Speaker/Line out | J8 | | |
+------------------------------------------------------------+
