# SIIG, INC.
SOUNDWAVE 3D PRO
Card Type Sound card
Chip Set Unidentified
Maximum Onboard None
Memory
I/O Options Line in, microphone in, speaker out ,
game/MIDI port, audio in CD-ROM (2), CD-ROM
interface-IDE, voice modem connector
Data Bus 16-bit ISA

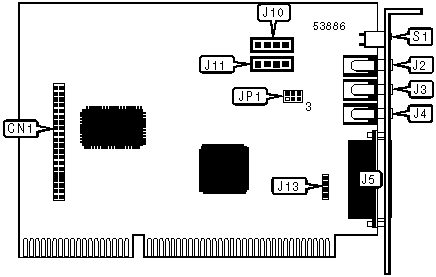

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|-----------------------+-------+--------------------+-------|
| CD-ROM interface - | CN1 | Game/MIDI port | J5 |
| IDE | | | |
|-----------------------+-------+--------------------+-------|
| Speaker out | J2 | Audio in - CD-ROM | J10 |
|-----------------------+-------+--------------------+-------|
| Line in | J3 | Audio in - CD-ROM | J11 |
|-----------------------+-------+--------------------+-------|
| Microphone in | J4 | Voice modem | J13 |
| | | connector | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Label | Position |
|-------------------------+-------+--------------------------|
| » | Speaker out enabled | JP1 | Pins 2 & 3, 5 & 6 closed |
|---+---------------------+-------+--------------------------|
| | Line out enabled | JP1 | Pins 1 & 2, 4 & 5 closed |
|---+---------------------+-------+--------------------------|
| » | 3D disabled | S1 | Off |
|---+---------------------+-------+--------------------------|
| | 3D enabled | S1 | On |
+------------------------------------------------------------+
