# TURTLE BEACH SYSTEMS
MALIBU SURROUND 64
Card Type Sound card
Chip Set SRS
Maximum Onboard Unidentified
Memory
I/O Options Game/MIDI port, microphone in, line in, line
out, audio in – CD-ROM (2), daughterboard
connector, S/PDIF connector,
Data Bus 16-bit ISA
Card Size Half-length, full-height card

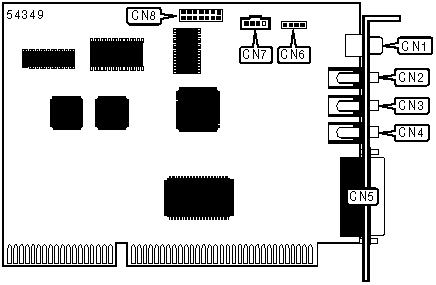

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|----------------+-------+---------------------------+-------|
| S/PDIF out | CN1 | Game/MIDI port | CN5 |
|----------------+-------+---------------------------+-------|
| Microphone in | CN2 | Audio in - CD-ROM (MPC-2) | CN6 |
|----------------+-------+---------------------------+-------|
| Line in | CN3 | Audio in - CD-ROM (Sony) | CN7 |
|----------------+-------+---------------------------+-------|
| Line out | CN4 | Daughterboard connector | CN8 |
+------------------------------------------------------------+
