# TURTLE BEACH SYSTEMS
DAYTONA PCI
Card Type Sound card
Chip Set Unidentified
Maximum Onboard Unidentified
Memory
I/O Options CD-ROM interface, game/MIDI port, line in,
auxiliary line in,
Audio in – CD-ROM, line out, modem in
Data Bus 32-bit PCI
Card Size Half-length, full-height card
IMG IMG 1
+------------------------------------------------------------+

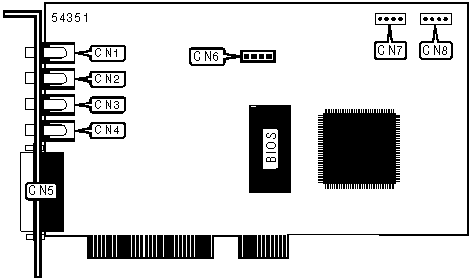

| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|-------------------+-------+------------------------+-------|
| Auxiliary line in | CN1 | Game/MIDI port | CN5 |
|-------------------+-------+------------------------+-------|
| Microphone in | CN2 | Audio in - CD-ROM | CN6 |
| | | (IDE) | |
|-------------------+-------+------------------------+-------|
| Line in | CN3 | Audio in - Auxiliary | CN7 |
|-------------------+-------+------------------------+-------|
| Line out | CN4 | Modem in | CN8 |
+------------------------------------------------------------+
