# SIEMENS NIXDORF
D1020
Card Type Sound card
Chip Set Unidentified
I/O Options Wave Blaster connector, audio in - CD-ROM, line in
(2),
microphone in (2), line out (2), speaker out (2),
game/MIDI port
Data Bus 16-bit ISA
Card Size Half-length, Full-height card

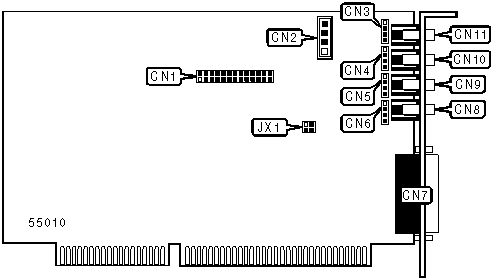

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|----------------------+-------+---------------------+-------|
| Wave Blaster | CN1 | Game/MIDI port | CN7 |
| connector | | | |
|----------------------+-------+---------------------+-------|
| Audio in - CD-ROM | CN2 | External speaker | CN8 |
| | | out | |
|----------------------+-------+---------------------+-------|
| Internal line in | CN3 | External line out | CN9 |
|----------------------+-------+---------------------+-------|
| Internal microphone | CN4 | External microphone | CN10 |
| in | | in | |
|----------------------+-------+---------------------+-------|
| Internal line out | CN5 | External line in | CN11 |
|----------------------+-------+---------------------+-------|
| Internal speaker out | CN6 | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Label | Position |
|--------------------------------+----------------+----------|
| ยป Capacitor microphone | JX1/Pins 1 & 2 | Closed |
|--------------------------------+----------------+----------|
| Dynamic microphone | JX1/Pins 2 & 3 | Closed |
+------------------------------------------------------------+
