# TERRATEC PROMEDIA
AUDIOSYSTEM EWS64 L
Card Type Sound card
Chip Set Unidentified
Maximum Onboard 64MB DRAM
Memory
I/O Options Game/MIDI port, microphone in (2), line in
(4), line out (4),
audio in - CD-ROM (4), 10-pin connector,
26-pin connector, beeper out,
PC speaker out
Data Bus 16-bit ISA
Card Size Full-length, full-height card

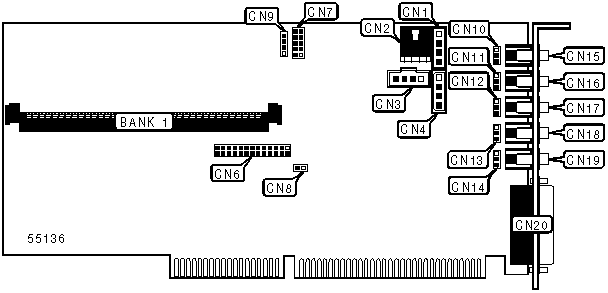

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|--------------------------+-------+-----------------+-------|
| Audio in - CD-ROM | CN1 | Line in 1 - | CN12 |
| (Mitsumi) | | internal | |
|--------------------------+-------+-----------------+-------|
| Audio in - CD-ROM (EIDE) | CN2 | Line in 2 - | CN13 |
| | | internal | |
|--------------------------+-------+-----------------+-------|
| Audio in - CD-ROM (Sony) | CN3 | Microphone in - | CN14 |
| | | internal | |
|--------------------------+-------+-----------------+-------|
| Audio in - CD-ROM | CN4 | Line out 1 - | CN15 |
| (Panasonic) | | external | |
|--------------------------+-------+-----------------+-------|
| Unidentified 26-pin | CN6 | Line out 2 - | CN16 |
| connector | | external | |
|--------------------------+-------+-----------------+-------|
| Unidentified 10-pin | CN7 | Line in 1 - | CN17 |
| connector | | external | |
|--------------------------+-------+-----------------+-------|
| PC speaker out | CN8 | Line in 2 - | CN18 |
| | | external | |
|--------------------------+-------+-----------------+-------|
| Beeper out | CN9 | Microphone in - | CN19 |
| | | external | |
|--------------------------+-------+-----------------+-------|
| Line out 1 - internal | CN10 | Game/MIDI port | CN20 |
|--------------------------+-------+-----------------+-------|
| Line out 2 - internal | CN11 | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|--------------------------+---------------+-----------------|
| 2MB | 2MB | None |
|--------------------------+---------------+-----------------|
| 6MB - (8) 1MB x 4 | 2MB | 1MB x 32 |
|--------------------------+---------------+-----------------|
| 6MB - (2) 1MB x 16 | 2MB | 1MB x 32 |
|--------------------------+---------------+-----------------|
| 10MB - (16) 1MB x 4 | 2MB | 2MB x 32 |
|--------------------------+---------------+-----------------|
| 10MB - (4) 1MB x 16 | 2MB | 2MB x 32 |
|--------------------------+---------------+-----------------|
| 10MB - (4) 2MB x 8 | 2MB | 2MB x 32 |
|--------------------------+---------------+-----------------|
| 18MB - (32) 4MB x 1 | 2MB | 4MB x 32 |
|--------------------------+---------------+-----------------|
| 18MB - (8) 4MB x 4 | 2MB | 4MB x 32 |
|--------------------------+---------------+-----------------|
| 34MB - (16) 4MB x 4 | 2MB | 8MB x 32 |
|--------------------------+---------------+-----------------|
| 64MB - (8) 16MB x 4 | None | 16MB x 32 |
|------------------------------------------------------------|
| Note: Location of Memory Bank 0 is unidentified. When |
| using a 64MB SIMM module, the 2MB of integrated on-board |
| memory will become inactive. Not all EDO memory will work, |
| the 64MB SIMM module must use 8 chips versus 32 chips. |
+------------------------------------------------------------+
