# TERRATEC PROMEDIA
AUDIOSYSTEM EWS64 S
Card Type Sound card
Chip Set Analog Devices, Inc.
Maximum Onboard 64MB DRAM
Memory
I/O Options Game/MIDI port, microphone in (2), line in
(2), line out (4),
audio in - CD-ROM (2), 16-pin connector,
20-pin connector,
26-pin connector
Data Bus 16-bit ISA
Card Size Full-length, full-height card
IMG IMG 1
+------------------------------------------------------------+

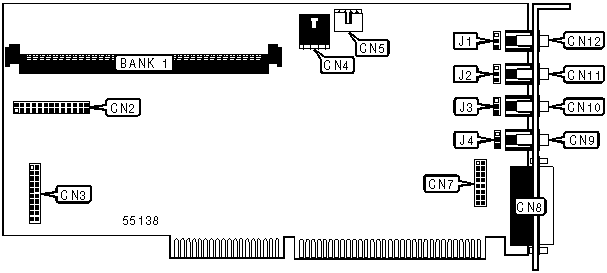

| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|----------------------+-------+---------------------+-------|
| 26-pin | CN2 | Line in - external | CN10 |
| Digitalextension | | | |
| connector | | | |
|----------------------+-------+---------------------+-------|
| 16-pin | CN3 | Line out - external | CN11 |
| Radioextension | | | |
| connector | | | |
|----------------------+-------+---------------------+-------|
| Audio in - CD-ROM | CN4 | Line out - external | CN12 |
| (IDE) | | | |
|----------------------+-------+---------------------+-------|
| Audio in - CD-ROM | CN5 | Microphone in - | J1 |
| (Panasonic) | | internal | |
|----------------------+-------+---------------------+-------|
| Unidentified 10-pin | CN7 | Line in - internal | J2 |
| connector | | | |
|----------------------+-------+---------------------+-------|
| Game/MIDI port | CN8 | Line out - internal | J3 |
|----------------------+-------+---------------------+-------|
| Microphone in - | CN9 | Line out - internal | J4 |
| external | | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|----------------+------------------+------------------------|
| 2MB | 2MB | None |
|----------------+------------------+------------------------|
| 6MB | 2MB | 1MB x 32 |
|----------------+------------------+------------------------|
| 6MB | 2MB | 1MB x 32 |
|----------------+------------------+------------------------|
| 10MB | 2MB | 2MB x 32 |
|----------------+------------------+------------------------|
| 10MB | 2MB | 2MB x 32 |
|----------------+------------------+------------------------|
| 10MB | 2MB | 2MB x 32 |
|----------------+------------------+------------------------|
| 18MB | 2MB | 4MB x 32 |
|----------------+------------------+------------------------|
| 18MB | 2MB | 4MB x 32 |
|----------------+------------------+------------------------|
| 34MB | 2MB | 8MB x 32 |
|----------------+------------------+------------------------|
| 64MB | None | 16MB x 32 |
|------------------------------------------------------------|
| Note: Location of Bank 0 is unidentified. When using a |
| 64MB SIMM module, the 2MB of integrated on-board memory |
| will become inactive. Not all EDO memory will work, the |
| 64MB SIMM module must use 8 chips versus 32 chips. |
+------------------------------------------------------------+
