# TERRATEC PROMEDIA
BASE 2 PCI
Card Type Sound card
Chip Set Unidentified
Maximum Onboard Unidentified
Memory
I/O Options Game/MIDI port, line in (2), speaker/line out
(2), microphone in (2),
wavetable connector, audio in - CD-ROM (2)
Data Bus 32-bit PCI
Card Size Half-length, full-height card
IMG IMG 1
+------------------------------------------------------------+

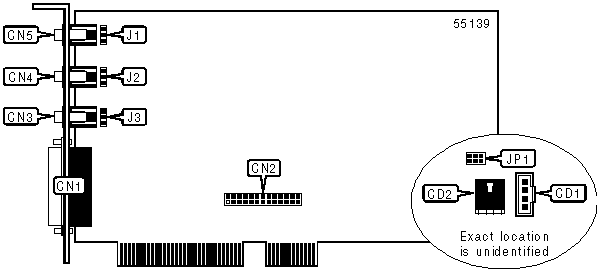

| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|---------------------+-------+----------------------+-------|
| Audio in - CD-ROM | CD1 | Line in - external | CN4 |
| (Sony) | | | |
|---------------------+-------+----------------------+-------|
| Audio in - CD-ROM | CD2 | Speaker/line out - | CN5 |
| (IDE) | | external | |
|---------------------+-------+----------------------+-------|
| Game/MIDI port | CN1 | Speaker/line out - | J1 |
| | | internal | |
|---------------------+-------+----------------------+-------|
| Wavetable connector | CN2 | Line in - internal | J2 |
|---------------------+-------+----------------------+-------|
| Microphone in - | CN3 | Microphone in - | J3 |
| external | | internal | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Label | Position |
|---------------------------+-------+------------------------|
| ยป Line amplifier disabled | JP1 | Pins 1 & 3, 2 & 4 |
| | | closed |
|---------------------------+-------+------------------------|
| Line amplifier enabled | JP1 | Pins 3 & 5, 4 & 6 |
| | | closed |
+------------------------------------------------------------+
