AC-300B TURBO MGP CARD
Category Graphics/printer card
Video Types Supported Monochrome
Video Processor N/A
Highest Resolution Supported 640 x 200
Data Bus Type 8-bit ISA
Memory Type DRAM
Maximum Onboard Memory 64KB

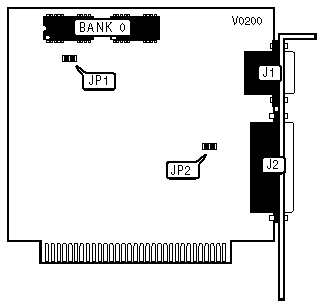

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|----------------------+----------+---------------+----------|
| 15-pin analog video | J1 | Parallel port | J2 |
| port | | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| PARALLEL PORT CONFIGURATION |
|------------------------------------------------------------|
| Setting | J2 |
|----------------------------------+-------------------------|
| ยป | Enabled | Closed |
|-----+----------------------------+-------------------------|
| | Disabled | Open |
+------------------------------------------------------------+
+------------------------------------------------------------+
| FACTORY CONFIGURED - DO NOT ALTER |
|------------------------------------------------------------|
| Jumper | Position |
|-----------------------------+------------------------------|
| JP1 | N/A |
+------------------------------------------------------------+
