       # UNIDENTIFIED

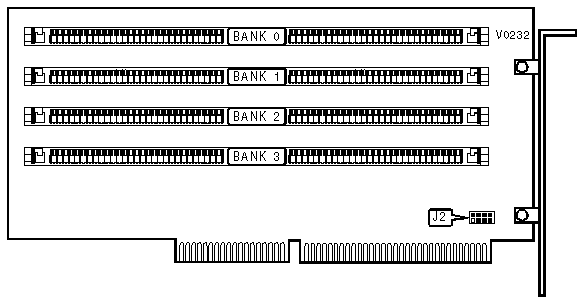

          AT PLUS (SIMM VERSION)

          Card Type          Memory card
          Chipset/Controller N/A
          I/O Options        N/A
          Maximum DRAM       8MB

   IMG IMG 1


          +------------------------------------------------------------+
          |                    AT BOARD SELECTION                      |
          |------------------------------------------------------------|
          |  Number of AT PLUS Boards installed  |         J2          |
          |--------------------------------------+---------------------|
          | »                |         1         |  Pins 1 & 2 closed  |
          |------------------+-------------------+---------------------|
          |                  |         2         |  Pins 3 & 4 closed  |
          |------------------+-------------------+---------------------|
          |                  |         3         |  Pins 5 & 6 closed  |
          |------------------+-------------------+---------------------|
          |                  |         4         |  Pins 7 & 8 closed  |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                    DRAM CONFIGURATION                      |
          |------------------------------------------------------------|
          |  Size  |   Bank 0   |   Bank 1   |   Bank 2   |   Bank 3   |
          |--------+------------+------------+------------+------------|
          |  2MB   | (2) 1M x 9 |    None    |    None    |    None    |
          |--------+------------+------------+------------+------------|
          |  4MB   | (2) 1M x 9 | (2) 1M x 9 |    None    |    None    |
          |--------+------------+------------+------------+------------|
          |  6MB   | (2) 1M x 9 | (2) 1M x 9 | (2) 1M x 9 |    None    |
          |--------+------------+------------+------------+------------|
          |  8MB   | (2) 1M x 9 | (2) 1M x 9 | (2) 1M x 9 | (2) 1M x 9 |
          +------------------------------------------------------------+
