# UNIDENTIFIED
EXPANSION MEMORY HALF CARD WITH CLOCK/CALENDAR
Card Type Memory card
Chipset/Controller N/A
I/O Options N/A
Maximum DRAM 576KB

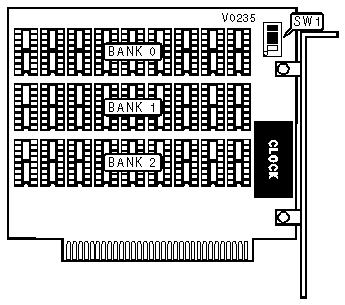

IMG IMG 1
+------------------------------------------------------------+
| MEMORY CONFIGURATION |
|------------------------------------------------------------|
| System Memory | Total | SW1/1 | SW1/2 | SW1/3 |
| | Memory | | | |
|----------------+-----------+----------+----------+---------|
| 64KB | 128KB | Off | On | Off |
|----------------+-----------+----------+----------+---------|
| 64KB | 192KB | Off | On | Off |
|----------------+-----------+----------+----------+---------|
| 64KB | 384KB | Off | On | Off |
|----------------+-----------+----------+----------+---------|
| 64KB | 448KB | Off | On | Off |
|----------------+-----------+----------+----------+---------|
| 64KB | 640KB | Off | On | Off |
|----------------+-----------+----------+----------+---------|
| 128KB | 192KB | On | Off | On |
|----------------+-----------+----------+----------+---------|
| 128KB | 384KB | On | Off | On |
|----------------+-----------+----------+----------+---------|
| 128KB | 448KB | On | Off | On |
|----------------+-----------+----------+----------+---------|
| 128KB | 640KB | On | Off | On |
|----------------+-----------+----------+----------+---------|
| 256KB (A) | 192KB | On | On | Off |
|----------------+-----------+----------+----------+---------|
| 256KB (A) | 384KB | On | On | Off |
|----------------+-----------+----------+----------+---------|
| 256KB (A) | 448KB | On | On | Off |
|----------------+-----------+----------+----------+---------|
| 256KB (B) | 512KB | On | Off | Off |
|----------------+-----------+----------+----------+---------|
| 256KB (B) | 576KB | On | Off | Off |
|----------------+-----------+----------+----------+---------|
| 256KB (B) | 640KB | On | On | Off |
|----------------+-----------+----------+----------+---------|
| 384KB | 448KB | On | On | On |
|----------------+-----------+----------+----------+---------|
| 384KB | 640KB | On | On | On |
|----------------+-----------+----------+----------+---------|
| 512KB | 640KB | Off | Off | On |
|------------------------------------------------------------|
| Note:Use the switch settings for 256KB (A) if 4164 chips |
| are installed in bank 0, and 256KB (B) if |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 | Bank 2 |
|------------+---------------+---------------+---------------|
| 64KB | (9) 4164 | None | None |
|------------+---------------+---------------+---------------|
| 128KB | (9) 4164 | (9) 4164 | None |
|------------+---------------+---------------+---------------|
| 256KB | (9) 41256 | None | None |
|------------+---------------+---------------+---------------|
| 320KB | (9) 4164 | (9) 41256 | None |
|------------+---------------+---------------+---------------|
| 384KB | (9) 4164 | (9) 41256 | (9) 4164 |
|------------+---------------+---------------+---------------|
| 512KB | (9) 41256 | (9) 41256 | None |
|------------+---------------+---------------+---------------|
| 576KB | (9) 41256 | (9) 41256 | (9) 4164 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| PARITY CONFIGURATION |
|------------------------------------------------------------|
| Setting | SW1/4 |
|---------------------------------+--------------------------|
| ยป | Enabled | On |
|---+-----------------------------+--------------------------|
| | Disabled | Off |
+------------------------------------------------------------+
