# UNIDENTIFIED
MEMO576 RAM CARD
Card Type Memory expansion
Chipset Controller Unidentified
I/O Options Memory
Maximum Dram 576KB

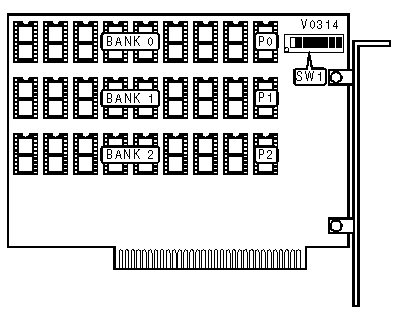

IMG IMG 1
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | P0 | Bank 1 | P1 | Bank 2 | P2 |
|-------+--------+--------+--------+--------+--------+-------|
| 192KB | (8) | (1) | (8) | (1) | (8) | (1) |
| | 4164 | 4164 | 4164 | 4164 | 4164 | 4164 |
|-------+--------+--------+--------+--------+--------+-------|
| 384KB | (8) | (1) | (8) | (1) | (8) | (1) |
| | 41256 | 41256 | 4164 | 4164 | 4164 | 4164 |
|-------+--------+--------+--------+--------+--------+-------|
| 512KB | (8) | (1) | (8) | (1) | NONE | NONE |
| | 41256 | 41256 | 41256 | 41256 | | |
|-------+--------+--------+--------+--------+--------+-------|
| 576KB | (8) | (1) | (8) | (1) | (8) | (1) |
| | 41256 | 41256 | 41256 | 41256 | 4164 | 4164 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| MOTHERBOARD MEMORY CONFIGURATION |
|------------------------------------------------------------|
| Size | SW1/1 | SW1/2 |
|--------------------+--------------------+------------------|
| 0K | Off | Off |
|--------------------+--------------------+------------------|
| 64KB | On | Off |
|--------------------+--------------------+------------------|
| 128KB | Off | On |
|--------------------+--------------------+------------------|
| 256KB | On | On |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM SWITCH CONFIGURATION |
|------------------------------------------------------------|
| Size | SW1/3 | SW1/4 |
|--------------------+-------------------+-------------------|
| 192KB | Off | Off |
|--------------------+-------------------+-------------------|
| 384KB | On | Off |
|--------------------+-------------------+-------------------|
| 512KB | Off | On |
|--------------------+-------------------+-------------------|
| 576KB | On | On |
+------------------------------------------------------------+
+------------------------------------------------------------+
| PARITY CHECK SELECTION |
|------------------------------------------------------------|
| Mode | SW1/6 |
|-------------------------------+----------------------------|
| Enabled | On |
|-------------------------------+----------------------------|
| Disabled | Off |
+------------------------------------------------------------+
+------------------------------------------------------------+
| FACTORY CONFIGURED-DO NOT ALTER |
|------------------------------------------------------------|
| Switch | Setting |
|------------------------------+-----------------------------|
| SW1/5 | On |
|------------------------------+-----------------------------|
| SW1/7 | N/A |
|------------------------------+-----------------------------|
| SW1/8 | N/A |
+------------------------------------------------------------+
