# UNIDENTIFIED
PARALLEL PRINTER CARD
Card Type Parallel card
Chipset Controller Unidentified
I/O Options Parallel port
Maximum Dram N/A

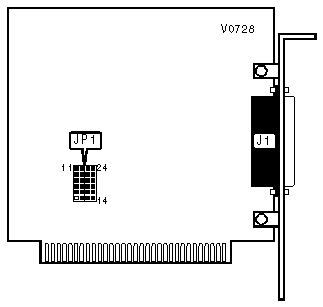

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location |
|-------------------------------+----------------------------|
| Parallel port | J1 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| ADDRESS SELECT |
|------------------------------------------------------------|
| Address | JP1 |
|------------------+-----------------------------------------|
| 278h | Pins 15 & 16, 17 & 18, 21 & 22 closed |
|------------------+-----------------------------------------|
| 378h | Pins 15 & 16, 17 & 18, 23 & 24 closed |
|------------------+-----------------------------------------|
| 3BCh | Pins 13 & 14, 19 & 20, 23 & 24 closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| FACTORY CONFIGURED-DO NOT ALTER |
|------------------------------------------------------------|
| Jumper | Setting |
|-------------------------------+----------------------------|
| JP1 pins 1 & 2 | Open |
|-------------------------------+----------------------------|
| JP1 pins 3 & 4 | Closed |
|-------------------------------+----------------------------|
| JP1 pins 5 & 6 | Open |
|-------------------------------+----------------------------|
| JP1 pins 7 & 8 | Closed |
|-------------------------------+----------------------------|
| JP1 pins 9 & 10 | Open |
|-------------------------------+----------------------------|
| JP1 pins 11 & 12 | Closed |
+------------------------------------------------------------+
