# VIDEOLOGIC, INC.
CAPTIVATOR PRO
Category Video
Video Types Supported N/A
Video Processor Unidentified
Highest Resolution Supported N/A
Data Bus Type 16-bit ISA
Memory Type N/A
Maximum Onboard Memory N/A
IMG IMG 1
+------------------------------------------------------------+

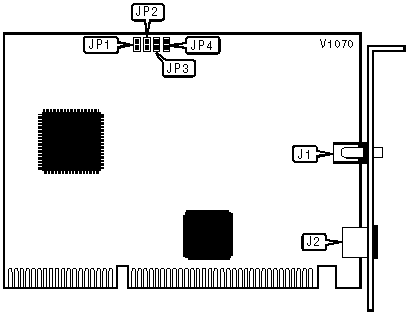

| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|-----------------+----------+--------------------+----------|
| Audio out | J1 | S-video connector | J2 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| BASE I/O ADDRESS SELECTION |
|------------------------------------------------------------|
| Address | JP1 | JP2 | JP3 | JP4 |
|-------------+-----------+-----------+-----------+----------|
| ยป | 350h | Open | Closed | Open | Open |
|---+---------+-----------+-----------+-----------+----------|
| | 340h | Closed | Open | Open | Open |
|---+---------+-----------+-----------+-----------+----------|
| | 360h | Open | Open | Closed | Open |
|---+---------+-----------+-----------+-----------+----------|
| | 370h | Open | Open | Open | Closed |
+------------------------------------------------------------+
