# ZOLTRIX, INC.
AUDIOPLUS 6400 3D V.2
Card Type Sound card
Chip Set Unidentified
Maximum Onboard None
Memory
I/O Options Line in, microphone in, speaker out, game/MIDI
interface, wavetable connector, audio in -
CD-ROM (2)
Data Bus 16-bit ISA
IMG IMG 1
+------------------------------------------------------------+

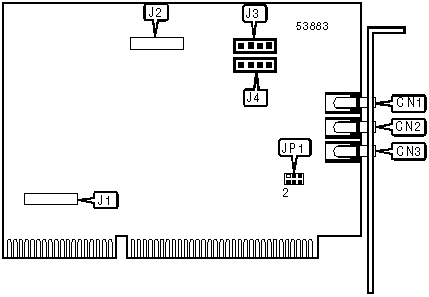

| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|---------------------+-------+----------------------+-------|
| Line in | CN1 | Game/MIDI interface | J2 |
|---------------------+-------+----------------------+-------|
| Microphone in | CN2 | Audio in - CD-ROM | J3 |
| | | (Panasonic) | |
|---------------------+-------+----------------------+-------|
| Speaker out | CN3 | Audio in - CD-ROM | J4 |
| | | (Sony) | |
|---------------------+-------+----------------------+-------|
| Wavetable connector | J1 | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Label | Position |
|------------------------------------+-------+---------------|
| Output type select power amplifier | JP1 | Pins 1 & 3, 2 |
| | | & 4 closed |
|------------------------------------+-------+---------------|
| Output type select line out | JP1 | Pins 3 & 5, 4 |
| | | & 6 closed |
+------------------------------------------------------------+
