# UNIDENTIFIED
DT197A30
Card Type Sound Card
Chip Set Unidentified
Maximum Onboard Unidentified
Memory
I/O Options Wavetable connector, MIDI/Game port, line in,
line out, microphone in, CD-ROM - audio
connectors(2), modem connector
Data Bus 16-bit ISA
Card Size Full-height, half-length card

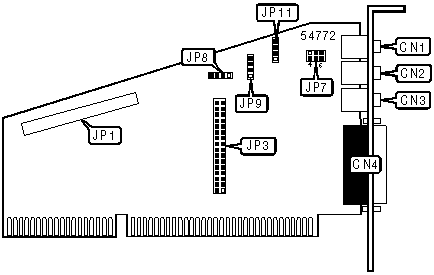

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|-------------------+-------+------------------------+-------|
| Audio out | CN1 | Wavetable connector | JP3 |
|-------------------+-------+------------------------+-------|
| Line in | CN2 | CD audio in | JP8 |
|-------------------+-------+------------------------+-------|
| Microphone | CN3 | CD audio in | JP9 |
|-------------------+-------+------------------------+-------|
| MIDI/Game port | CN4 | Modem in connector | JP11 |
|-------------------+-------+------------------------+-------|
| Unidentified | JP1 | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Label | Position |
|-------------------------+-------+--------------------------|
| ยป | Speaker out | JP7 | Pins 2 & 3, 5 & 6 closed |
|---+---------------------+-------+--------------------------|
| | Line out | JP7 | Pins 1 & 2, 4 & 5 closed |
+------------------------------------------------------------+
