# AMERICAN DIGICOM CORPORATION
486M
Processor 80486SX/80486DX
Processor Speed 33/50MHz
Chip Set OPTI
Max. Onboard DRAM 32MB
Cache 64/256KB
BIOS AMI
Dimensions 330mm x 218mm
I/O Options None
NPU Options 4167

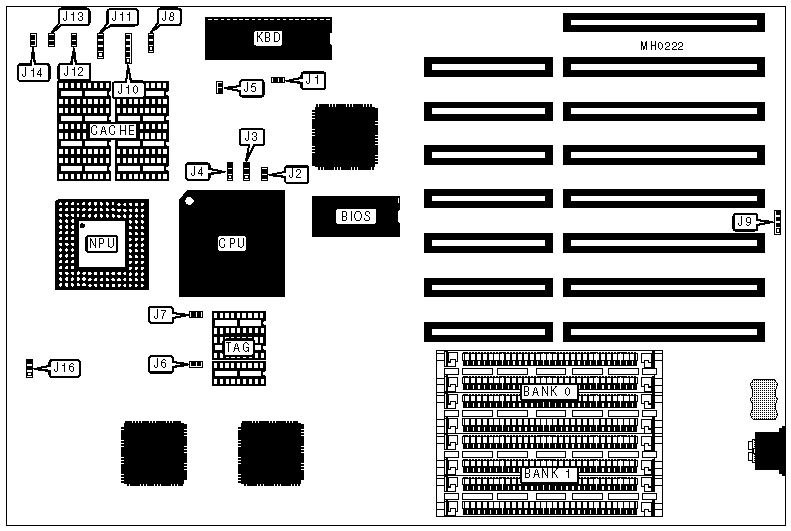

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|---------------------+----------+----------------+----------|
| External battery | J9 | Turbo switch | J12 |
|---------------------+----------+----------------+----------|
| Power LED & keylock | J10 | Turbo LED | J13 |
|---------------------+----------+----------------+----------|
| Speaker | J11 | Reset switch | J14 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Jumper | Position |
|------------------------------------+--------+--------------|
| » | Monitor type select color | J1 | Closed |
|---+--------------------------------+--------+--------------|
| | Monitor type select monochrome | J1 | Open |
|---+--------------------------------+--------+--------------|
| » | CMOS memory normal operation | J8 | pins 2 & 3 |
| | | | closed |
|---+--------------------------------+--------+--------------|
| | CMOS memory clear | J8 | pins 1 & 2 |
| | | | closed |
|---+--------------------------------+--------+--------------|
| » | CPU speed select 33MHz | J16 | pins 1 & 2 |
| | | | closed |
|---+--------------------------------+--------+--------------|
| | CPU speed select 50MHz | J16 | pins 2 & 3 |
| | | | closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|------------------+--------------------+--------------------|
| 1MB | (4) 256K x 9 | NONE |
|------------------+--------------------+--------------------|
| 2MB | (4) 256K x 9 | (4) 256K x 9 |
|------------------+--------------------+--------------------|
| 4MB | (4) 1M x 9 | NONE |
|------------------+--------------------+--------------------|
| 5MB | (4) 256K x 9 | (4) 1M x 9 |
|------------------+--------------------+--------------------|
| 8MB | (4) 1M x 9 | (4) 1M x 9 |
|------------------+--------------------+--------------------|
| 16MB | (4) 4M x 9 | NONE |
|------------------+--------------------+--------------------|
| 20MB | (4) 1M x 9 | (4) 4M x 9 |
|------------------+--------------------+--------------------|
| 32MB | (4) 4M x 9 | (4) 4M x 9 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | TAG |
|------------------+--------------------+--------------------|
| 64KB | (8) 8K x 8 | (3) 4K x 4 |
|------------------+--------------------+--------------------|
| 256KB | (8) 32K x 8 | (3) 16K x 4 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE CONFIGURATION |
|------------------------------------------------------------|
| Size | JP5 | JP6 | JP7 |
|--------------+---------------+--------------+--------------|
| 64KB | Open | Open | Open |
|--------------+---------------+--------------+--------------|
| 256KB | Closed | Closed | Closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU TYPE CONFIGURATION |
|------------------------------------------------------------|
| Type | J2 | J3 | J4 |
|----------+---------+-------------------+-------------------|
| 80486SX | Open | Open | pins 2 & 3 closed |
|----------+---------+-------------------+-------------------|
| 80486DX | Closed | pins 2 & 3 closed | pins 1 & 2 closed |
+------------------------------------------------------------+
