# ATRONICS INTERNATIONAL, INC.
ATI-486/B2
Processor 80486SX/80487SX/80486DX
Processor Speed 20/25/33/40/50MHz
Chip Set UMC
Max. Onboard DRAM 32MB
Cache 32/64/128/256KB
BIOS AMI
Dimensions 330mm x 218mm
I/O Options 32-bit external memory card
NPU Options 4167

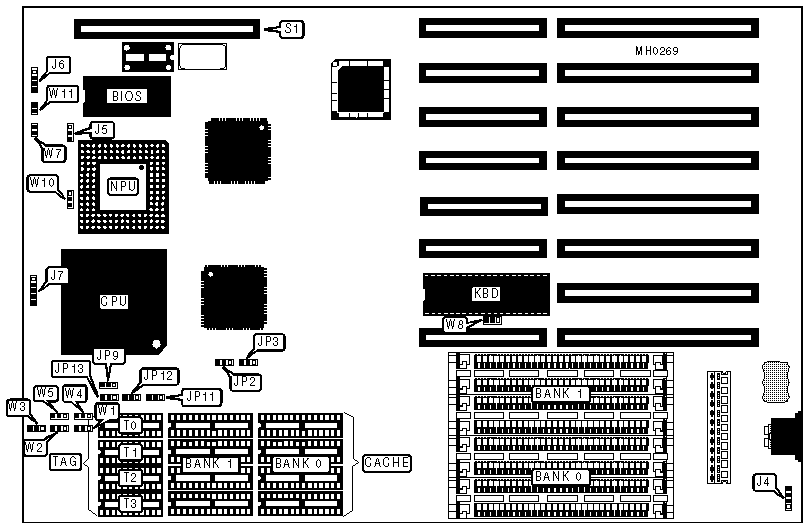

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|-------------------+----------+------------------+----------|
| External battery | J4 | 32-bit external | S1 |
| | | memory card | |
|-------------------+----------+------------------+----------|
| Turbo switch | J5 | Reset switch | W7 |
|-------------------+----------+------------------+----------|
| Speaker | J6 | Turbo LED | W11 |
|-------------------+----------+------------------+----------|
| Power LED & | J7 | | |
| Keylock | | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Jumper | Position |
|------------------------------------+--------+--------------|
| ยป | Monitor type select monochrome | W8 | pins 1 & 2 |
| | | | closed |
|---+--------------------------------+--------+--------------|
| | Monitor type select color | W8 | pins 2 & 3 |
| | | | closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|------------------+--------------------+--------------------|
| 1MB | (4) 256K x 9 | NONE |
|------------------+--------------------+--------------------|
| 2MB | (4) 256K x 9 | (4) 256K x 9 |
|------------------+--------------------+--------------------|
| 4MB | (4) 1M x 9 | NONE |
|------------------+--------------------+--------------------|
| 5MB | (4) 1M x 9 | (4) 256K x 9 |
|------------------+--------------------+--------------------|
| 8MB | (4) 1M x 9 | (4) 1M x 9 |
|------------------+--------------------+--------------------|
| 16MB | (4) 4M x 9 | NONE |
|------------------+--------------------+--------------------|
| 17MB | (4) 4M x 9 | (4) 256K x 9 |
|------------------+--------------------+--------------------|
| 20MB | (4) 4M x 9 | (4) 1M x 9 |
|------------------+--------------------+--------------------|
| 32MB | (4) 4M x 9 | (4) 4M x 9 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM JUMPER CONFIGURATION |
|------------------------------------------------------------|
| Type | JP2 | JP3 |
|--------------------+-------------------+-------------------|
| Onboard and/or | pins 1 & 2 closed | pins 1 & 2 closed |
| external card | | |
|--------------------+-------------------+-------------------|
| External card only | pins 2 & 3 closed | pins 2 & 3 closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 | TAG (T0,T1,T3) |
|---------+---------------+--------------+-------------------|
| 32KB | (4) 8K x 8 | NONE | (3) 16K x 4 |
|---------+---------------+--------------+-------------------|
| 64KB | (4) 8K x 8 | (4) 8K x 8 | (3) 16K x 4 |
|---------+---------------+--------------+-------------------|
| 128KB | (4) 32K x 8 | NONE | (3) 16K x 4 |
|---------+---------------+--------------+-------------------|
| 256KB | (4) 32K x 8 | (4) 32K x 8 | (3) 16K x 4 |
|------------------------------------------------------------|
| Note:A 16K x 4 chip is used in DIP socket T2 only when |
| cacheable DRAM exceeds 16MB. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE JUMPER CONFIGURATION |
|------------------------------------------------------------|
| Size | W1 | W2 | W3 | W4 | W5 | W10 |
|--------+--------+--------+--------+--------+-------+-------|
| 32KB | 1 & 2 | 1 & 2 | 1 & 2 | 1 & 2 | 1 & 2 | 1 & 2 |
|--------+--------+--------+--------+--------+-------+-------|
| 64KB | 2 & 3 | 1 & 2 | 1 & 2 | 2 & 3 | 2 & 3 | 2 & 3 |
|--------+--------+--------+--------+--------+-------+-------|
| 128KB | 1 & 2 | 1 & 2 | 2 & 3 | 1 & 2 | 2 & 3 | 2 & 3 |
|--------+--------+--------+--------+--------+-------+-------|
| 256KB | 2 & 3 | 2 & 3 | 2 & 3 | 2 & 3 | 2 & 3 | 2 & 3 |
|------------------------------------------------------------|
| Note: Pins designated should be in the closed position. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU TYPE CONFIGURATION |
|------------------------------------------------------------|
| Type | JP9 | JP11 | JP12 | JP13 |
|---------+------------+------------+------------+-----------|
| 80486SX | pins 1 & 2 | pins 2 & 3 | pins 2 & 3 | pins 2 & |
| | closed | closed | closed | 3 closed |
|---------+------------+------------+------------+-----------|
| 80487SX | pins 2 & 3 | pins 2 & 3 | pins 2 & 3 | pins 2 & |
| | closed | closed | closed | 3 closed |
|---------+------------+------------+------------+-----------|
| 80486DX | pins 1 & 2 | pins 1 & 2 | pins 1 & 2 | pins 1 & |
| | closed | closed | closed | 2 closed |
+------------------------------------------------------------+
