# ADVANCED COMPUTER TECHNOLOGY, LTD.
ZX-25/HS, ZX-20/HS, ZX-16/HS
Processor 80386SX
Processor Speed 16/20/25MHz
Chip Set ACT
Max. Onboard DRAM 8MB
Cache None
BIOS AMI
Dimensions 218mm x 218mm
I/O Options None
NPU Options 80387SX

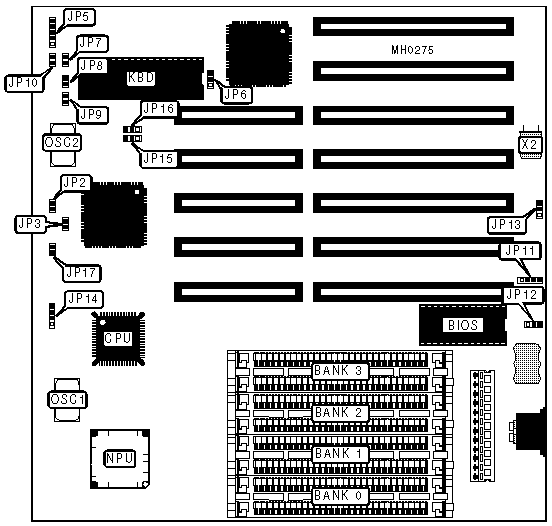

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|-------------------+----------+------------------+----------|
| Turbo LED | JP2 | External battery | JP11 |
|-------------------+----------+------------------+----------|
| Power LED & | JP5 | Speaker | JP14 |
| Keylock | | | |
|-------------------+----------+------------------+----------|
| Reset switch | JP10 | Turbo switch | JP17 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Jumper | Position |
|--------------------------------------+--------+------------|
| » | Factory configured - do not | JP3 | N/A |
| | alter | | |
|---+----------------------------------+--------+------------|
| » | Monitor type select color | JP6 | pins 2 & 3 |
| | | | closed |
|---+----------------------------------+--------+------------|
| | Monitor type select monochrome | JP6 | pins 1 & 2 |
| | | | closed |
|---+----------------------------------+--------+------------|
| » | Factory configured - do not | JP7 | N/A |
| | alter | | |
|---+----------------------------------+--------+------------|
| » | Factory configured - do not | JP8 | N/A |
| | alter | | |
|---+----------------------------------+--------+------------|
| » | Factory configured - do not | JP9 | N/A |
| | alter | | |
|---+----------------------------------+--------+------------|
| » | Battery select internal | JP12 | pins 2 & 3 |
| | | | closed |
|---+----------------------------------+--------+------------|
| | Battery select external | JP12 | pins 1 & 2 |
| | | | closed |
|---+----------------------------------+--------+------------|
| » | Power good signal detect from | JP13 | pins 1 & 2 |
| | power supply | | closed |
|---+----------------------------------+--------+------------|
| | Power good signal detect from | JP13 | pins 2 & 3 |
| | board | | closed |
|---+----------------------------------+--------+------------|
| » | CPU speed select 20MHz or 25MHz | JP15 | pins 1 & 2 |
| | | | closed |
|---+----------------------------------+--------+------------|
| | CPU speed select 16MHz | JP15 | pins 2 & 3 |
| | | | closed |
|---+----------------------------------+--------+------------|
| » | I/O bus speed select 8MHz | JP16 | pins 1 & 2 |
| | | | closed |
|---+----------------------------------+--------+------------|
| | I/O bus speed select 6MHz | JP16 | pins 2 & 3 |
| | | | closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 | Bank 2 | Bank 3 |
|-------+-------------+------------+------------+------------|
| 512KB | (2) 256K x | NONE | NONE | NONE |
| | 9 | | | |
|-------+-------------+------------+------------+------------|
| 1MB | (2) 256K x | (2) 256K x | NONE | NONE |
| | 9 | 9 | | |
|-------+-------------+------------+------------+------------|
| 1.5MB | (2) 256K x | (2) 256K x | (2) 256K x | NONE |
| | 9 | 9 | 9 | |
|-------+-------------+------------+------------+------------|
| 2MB | (2) 256K x | (2) 256K x | (2) 256K x | (2) 256K x |
| | 9 | 9 | 9 | 9 |
|-------+-------------+------------+------------+------------|
| 2MB | (2) 1M x 9 | NONE | NONE | NONE |
|-------+-------------+------------+------------+------------|
| 3MB | (2) 256K x | (2) 256K x | (2) 1M x 9 | NONE |
| | 9 | 9 | | |
|-------+-------------+------------+------------+------------|
| 4MB | (2) 1M x 9 | (2) 1M x 9 | NONE | NONE |
|-------+-------------+------------+------------+------------|
| 5MB | (2) 256K x | (2) 256K x | (2) 1M x 9 | (2) 1M x 9 |
| | 9 | 9 | | |
|-------+-------------+------------+------------+------------|
| 6MB | (2) 1M x 9 | (2) 1M x 9 | (2) 1M x 9 | NONE |
|-------+-------------+------------+------------+------------|
| 8MB | (2) 1M x 9 | (2) 1M x 9 | (2) 1M x 9 | (2) 1M x 9 |
+------------------------------------------------------------+
