# AMERICAN DIGICOM CORPORATION
386P
Processor 80386DX
Processor Speed 25/33MHz
Chip Set OPTI
Max. Onboard DRAM 32MB
SRAM Cache None
BIOS AMI
Dimensions 240mm x 220mm
I/O Options None
NPU Options 80387/3167

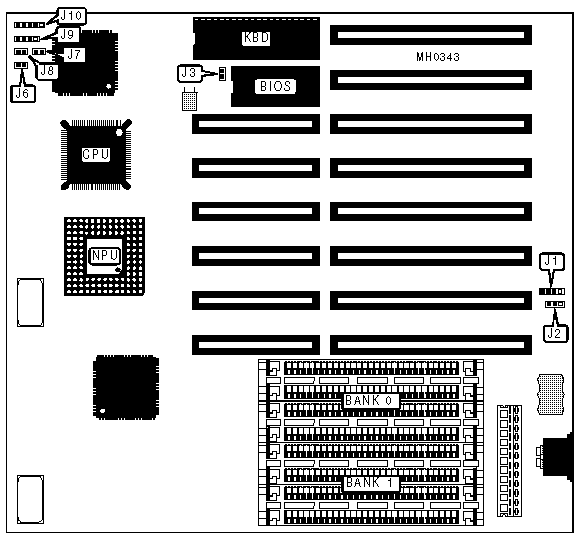

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|------------------+----------+-------------------+----------|
| External battery | J2 | Turbo switch | J8 |
|------------------+----------+-------------------+----------|
| Reset switch | J6 | Speaker | J9 |
|------------------+----------+-------------------+----------|
| Turbo LED | J7 | Power LED & | J10 |
| | | keylock | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Jumper | Position |
|------------------------------------+--------+--------------|
| » | CMOS memory normal operation | J1 | pins 2 & 3 |
| | | | closed |
|---+--------------------------------+--------+--------------|
| | CMOS memory clear | J1 | pins 1 & 2 |
| | | | closed |
|---+--------------------------------+--------+--------------|
| » | Monitor type select color | J3 | closed |
|---+--------------------------------+--------+--------------|
| | Monitor type select monochrome | J3 | open |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|------------------+--------------------+--------------------|
| 1MB | (4) 256K x 9 | NONE |
|------------------+--------------------+--------------------|
| 2MB | (4) 256K x 9 | (4) 256K x 9 |
|------------------+--------------------+--------------------|
| 4MB | (4) 1M x 9 | NONE |
|------------------+--------------------+--------------------|
| 5MB | (4) 256K x 9 | (4) 1M x 9 |
|------------------+--------------------+--------------------|
| 8MB | (4) 1M x 9 | (4) 1M x 9 |
|------------------+--------------------+--------------------|
| 16MB | (4) 4M x 9 | NONE |
|------------------+--------------------+--------------------|
| 20MB | (4) 4M x 9 | (4) 1M x 9 |
|------------------+--------------------+--------------------|
| 32MB | (4) 4M x 9 | (4) 4M x 9 |
+------------------------------------------------------------+
