# AURORA IMPEX CORPORATION
486-33/50WB
Processor 80486SX/80486DX
Processor Speed 33/50MHz
Chip Set OPTI
Max. Onboard DRAM 32MB
Cache 64/256KB
BIOS AMI
Dimensions 331mm x 219mm
I/O Options 32-bit external memory card slot
NPU Options 4167

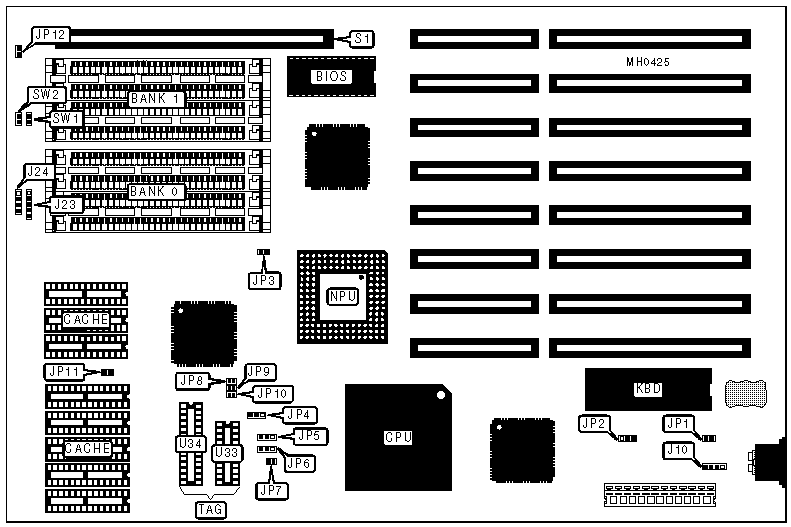

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|-------------------+----------+------------------+----------|
| External battery | J10 | 32-bit external | S1 |
| | | memory card | |
|-------------------+----------+------------------+----------|
| Power LED & | J23 | Reset switch | SW1 |
| keylock | | | |
|-------------------+----------+------------------+----------|
| Turbo LED | JP12 | Turbo switch | SW2 |
|-------------------+----------+------------------+----------|
| Speaker | JP24 | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Jumper | Position |
|------------------------------------+--------+--------------|
| » | Battery select internal | J10 | pins 2 & 3 |
| | | | closed |
|---+--------------------------------+--------+--------------|
| | Battery select external | J10 | Closed |
|---+--------------------------------+--------+--------------|
| » | Monitor type select color | JP1 | Closed |
|---+--------------------------------+--------+--------------|
| | Monitor type select monochrome | JP1 | Open |
|---+--------------------------------+--------+--------------|
| » | CMOS memory normal operation | JP2 | pins 2 & 3 |
| | | | closed |
|---+--------------------------------+--------+--------------|
| | CMOS memory clear | JP2 | pins 1 & 2 |
| | | | closed |
|---+--------------------------------+--------+--------------|
| » | Bus speed select iOSC/6 | JP3 | Closed |
|---+--------------------------------+--------+--------------|
| | Bus speed select iOSC/4 | JP3 | Open |
|---+--------------------------------+--------+--------------|
| » | CPU speed select iOSC/1 | JP4 | pins 1 & 2 |
| | | | closed |
|---+--------------------------------+--------+--------------|
| | CPU speed select iOSC/2 | JP4 | pins 2 & 3 |
| | | | closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 | Bank 2 | Bank 3 |
|------+-------------+-------------+------------+------------|
| 1MB | (4) 256K x | NONE | NONE | NONE |
| | 9 | | | |
|------+-------------+-------------+------------+------------|
| 2MB | (4) 256K x | (4) 256K x | NONE | NONE |
| | 9 | 9 | | |
|------+-------------+-------------+------------+------------|
| 3MB | (4) 256K x | (4) 256K x | (4) 256K x | NONE |
| | 9 | 9 | 9 | |
|------+-------------+-------------+------------+------------|
| 4MB | (4) 256K x | (4) 256K x | (4) 256K x | (4) 256K x |
| | 9 | 9 | 9 | 9 |
|------+-------------+-------------+------------+------------|
| 4MB | (4) 1M x 9 | NONE | NONE | NONE |
|------+-------------+-------------+------------+------------|
| 5MB | (4) 1M x 9 | (4) 256K x | NONE | NONE |
| | | 9 | | |
|------+-------------+-------------+------------+------------|
| 6MB | (4) 1M x 9 | (4) 256K x | (4) 256K x | NONE |
| | | 9 | 9 | |
|------+-------------+-------------+------------+------------|
| 7MB | (4) 1M x 9 | (4) 256K x | (4) 256K x | (4) 256K x |
| | | 9 | 9 | 9 |
|------+-------------+-------------+------------+------------|
| 8MB | (4) 1M x 9 | (4) 1M x 9 | NONE | NONE |
|------+-------------+-------------+------------+------------|
| 9MB | (4) 1M x 9 | (4) 1M x 9 | (4) 256K x | NONE |
| | | | 9 | |
|------+-------------+-------------+------------+------------|
| 10MB | (4) 1M x 9 | (4) 1M x 9 | (4) 256K x | (4) 256K x |
| | | | 9 | 9 |
|------+-------------+-------------+------------+------------|
| 12MB | (4) 1M x 9 | (4) 1M x 9 | (4) 1M x 9 | NONE |
|------+-------------+-------------+------------+------------|
| 13MB | (4) 1M x 9 | (4) 1M x 9 | (4) 1M x 9 | (4) 256K x |
| | | | | 9 |
|------+-------------+-------------+------------+------------|
| 16MB | (4) 1M x 9 | (4) 1M x 9 | (4) 1M x 9 | (4) 1M x 9 |
|------+-------------+-------------+------------+------------|
| 16MB | (4) 4M x 9 | NONE | NONE | NONE |
|------+-------------+-------------+------------+------------|
| 20MB | (4) 4M x 9 | (4) 1M x 9 | NONE | NONE |
|------+-------------+-------------+------------+------------|
| 24MB | (4) 4M x 9 | (4) 1M x 9 | (4) 1M x 9 | NONE |
|------+-------------+-------------+------------+------------|
| 28MB | (4) 4M x 9 | (4) 1M x 9 | (4) 1M x 9 | (4) 1M x 9 |
|------+-------------+-------------+------------+------------|
| 32MB | (4) 4M x 9 | (4) 4M x 9 | NONE | NONE |
|------+-------------+-------------+------------+------------|
| 36MB | (4) 4M x 9 | (4) 4M x 9 | (4) 1M x 9 | NONE |
|------+-------------+-------------+------------+------------|
| 40MB | (4) 4M x 9 | (4) 4M x 9 | (4) 1M x 9 | (4) 1M x 9 |
|------+-------------+-------------+------------+------------|
| 48MB | (4) 4M x 9 | (4) 4M x 9 | (4) 4M x 9 | NONE |
|------+-------------+-------------+------------+------------|
| 52MB | (4) 4M x 9 | (4) 4M x 9 | (4) 4M x 9 | (4) 1M x 9 |
|------+-------------+-------------+------------+------------|
| 64MB | (4) 4M x 9 | (4) 4M x 9 | (4) 4M x 9 | (4) 4M x 9 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | TAG (U33) | TAG (U34) |
|------------+---------------+---------------+---------------|
| 64KB | (8) 8K x 8 | (1) 64K x 1 | (1) 8K x 8 |
|------------+---------------+---------------+---------------|
| 256KB | (8) 32K x 8 | (1) 64K x 1 | (1) 32K x 8 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE JUMPER CONFIGURATION |
|------------------------------------------------------------|
| Size | JP8 | JP9 | JP10 | JP11 |
|-----------+------------+------------+----------+-----------|
| 64KB | Open | Open | Open | Open |
|-----------+------------+------------+----------+-----------|
| 256KB | Closed | Closed | Open | Closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU TYPE CONFIGURATION |
|------------------------------------------------------------|
| Type | JP5 | JP6 | JP7 |
|----------+-------------------+-------------------+---------|
| 80486SX | Open | pins 2 & 3 closed | Open |
|----------+-------------------+-------------------+---------|
| 80486DX | pins 2 & 3 closed | pins 1 & 2 closed | Closed |
+------------------------------------------------------------+
