# BEAVER COMPUTER CORPORATION
386DX
Processor 80386DX
Processor Speed 25MHz
Chip Set TI
Max. Onboard DRAM 32MB
Cache None
BIOS AMI/Award
Dimensions 330mm x 218mm
I/O Options None
NPU Options 80387/3167

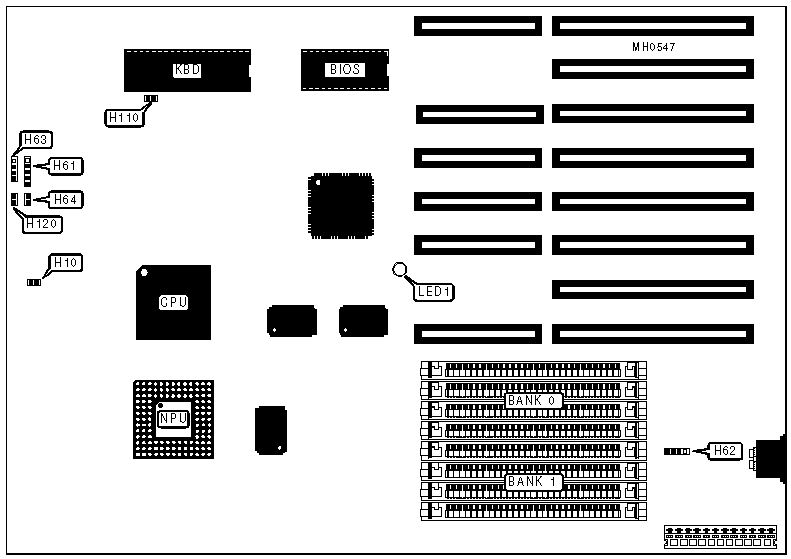

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|------------------+----------+-------------------+----------|
| Power LED & | H61 | Reset switch | H64 |
| keylock | | | |
|------------------+----------+-------------------+----------|
| External battery | H62 | Turbo LED | H120 |
|------------------+----------+-------------------+----------|
| Speaker | H63 | Onboard power LED | LED1 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Jumper | Position |
|----------------------------------------+--------+----------|
| » | Monitor type select color | H110 | Closed |
|---+------------------------------------+--------+----------|
| | Monitor type select monochrome | H110 | Open |
|---+------------------------------------+--------+----------|
| » | Factory configured - do not alter | H10 | N/A |
|---+------------------------------------+--------+----------|
| » | Factory configured - do not alter | H10 | N/A |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|------------------+--------------------+--------------------|
| 1MB | (4) 256K x 9 | NONE |
|------------------+--------------------+--------------------|
| 2MB | (4) 256K x 9 | (4) 256K x 9 |
|------------------+--------------------+--------------------|
| 4MB | (4) 1M x 9 | NONE |
|------------------+--------------------+--------------------|
| 5MB | (4) 1M x 9 | (4) 256K x 9 |
|------------------+--------------------+--------------------|
| 8MB | (4) 1M x 9 | (4) 1M x 9 |
|------------------+--------------------+--------------------|
| 16MB | (4) 4M x 9 | NONE |
|------------------+--------------------+--------------------|
| 17MB | (4) 4M x 9 | (4) 256K x 9 |
|------------------+--------------------+--------------------|
| 20MB | (4) 4M x 9 | (4) 1M x 9 |
|------------------+--------------------+--------------------|
| 32MB | (4) 4M x 9 | (4) 4M x 9 |
+------------------------------------------------------------+
