# BIOSTAR MICROTECH INTERNATIONAL CORPORATION
MB-1316C/MB-1320C/MB-1325C
Processor 80386SX
Processor Speed 16/20/25MHz
Chip Set OPTI
Max. Onboard DRAM 16MB
Cache None
BIOS AMI
Dimensions 330mm x 218mm
I/O Options None
NPU Options 80387SX

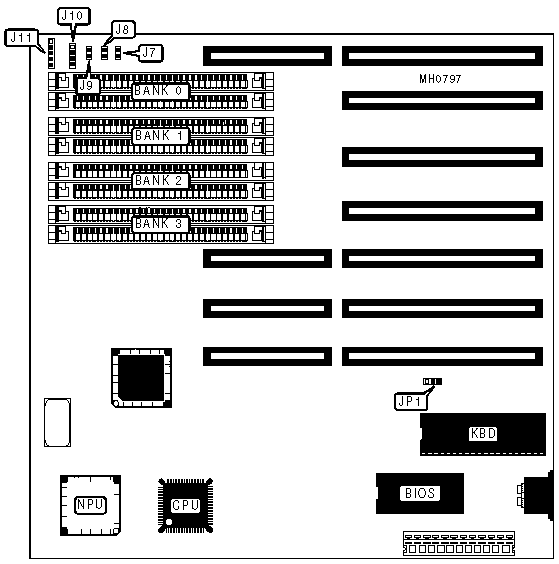

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|----------------+----------+---------------------+----------|
| Reset switch | J7 | Speaker | J10 |
|----------------+----------+---------------------+----------|
| Turbo LED | J8 | Power LED & keylock | J11 |
|----------------+----------+---------------------+----------|
| Turbo switch | J9 | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Jumper | Position |
|------------------------------------+--------+--------------|
| ยป | Monitor type select color | JP1 | pins 1 & 2 |
| | | | closed |
|---+--------------------------------+--------+--------------|
| | Monitor type select monochrome | JP1 | pins 2 & 3 |
| | | | closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 | Bank 2 | Bank 3 |
|-------+-------------+------------+------------+------------|
| 512KB | (2) 256K x | NONE | NONE | NONE |
| | 9 | | | |
|-------+-------------+------------+------------+------------|
| 1MB | (2) 256K x | (2) 256K x | NONE | NONE |
| | 9 | 9 | | |
|-------+-------------+------------+------------+------------|
| 1.5MB | (2) 256K x | (2) 256K x | (2) 256K x | NONE |
| | 9 | 9 | 9 | |
|-------+-------------+------------+------------+------------|
| 2MB | (2) 256K x | (2) 256K x | (2) 256K x | (2) 256K x |
| | 9 | 9 | 9 | 9 |
|-------+-------------+------------+------------+------------|
| 2MB | (2) 1M x 9 | NONE | NONE | NONE |
|-------+-------------+------------+------------+------------|
| 2.5MB | (2) 256K x | (2) 1M x 9 | NONE | NONE |
| | 9 | | | |
|-------+-------------+------------+------------+------------|
| 3MB | (2) 256K x | (2) 256K x | (2) 1M x 9 | NONE |
| | 9 | 9 | | |
|-------+-------------+------------+------------+------------|
| 4MB | (2) 1M x 9 | (2) 1M x 9 | NONE | NONE |
|-------+-------------+------------+------------+------------|
| 4.5MB | (2) 256K x | (2) 1M x 9 | (2) 1M x 9 | NONE |
| | 9 | | | |
|-------+-------------+------------+------------+------------|
| 5MB | (2) 256K x | (2) 256K x | (2) 1M x 9 | (2) 1M x 9 |
| | 9 | 9 | | |
|-------+-------------+------------+------------+------------|
| 6MB | (2) 1M x 9 | (2) 1M x 9 | (2) 1M x 9 | NONE |
|-------+-------------+------------+------------+------------|
| 6.5MB | (2) 256K x | (2) 1M x 9 | (2) 1M x 9 | (2) 1M x 9 |
| | 9 | | | |
|-------+-------------+------------+------------+------------|
| 8MB | (2) 1M x 9 | (2) 1M x 9 | (2) 1M x 9 | (2) 1M x 9 |
|-------+-------------+------------+------------+------------|
| 9MB | (2) 256K x | (2) 256K x | (2) 4M x 9 | NONE |
| | 9 | 9 | | |
|-------+-------------+------------+------------+------------|
| 10MB | (2) 1M x 9 | (2) 4M x 9 | NONE | NONE |
|-------+-------------+------------+------------+------------|
| 16MB | (2) 4M x 9 | (2) 4M x 9 | NONE | NONE |
+------------------------------------------------------------+
