# BIOSTAR MICROTECH INTERNATIONAL CORPORATION
MB-1333PMB-CH/1340PMB-CH
MB-1333PME-CH/1340PME-CH (Rev. A, B & E)
Processor 80386DX
Processor Speed 33/40MHz
Chip Set VLSI
Max. Onboard DRAM 32MB
Cache 32/64/128/256KB
BIOS AMI
Dimensions 330mm x 218mm
I/O Options None
NPU Options 80387/3167

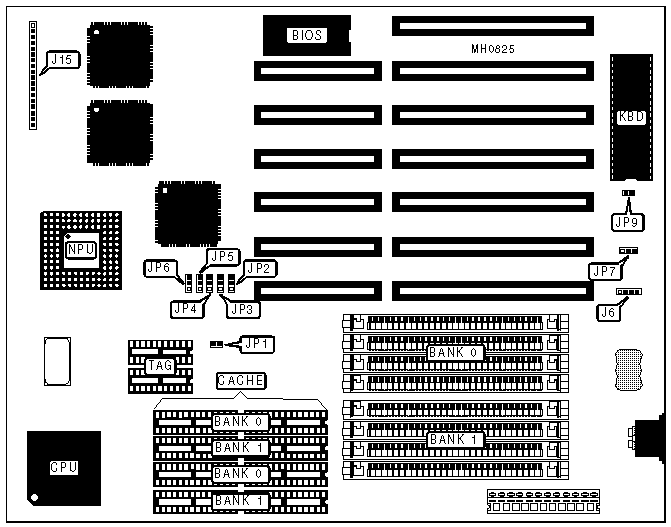

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|------------------+-------------+--------------+------------|
| External battery | J6 | Reset switch | J15 pins |
| | | | 12-13 |
|------------------+-------------+--------------+------------|
| Speaker | J15 pins | Turbo switch | J15 pins |
| | 1-4 | | 14-16 |
|------------------+-------------+--------------+------------|
| Keylock | J15 pins | Power LED | J15 pins |
| | 5-9 | | 17-18 |
|------------------+-------------+--------------+------------|
| Turbo LED | J15 pins | | |
| | 10-11 | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Jumper | Position |
|------------------------------------+--------+--------------|
| » | CMOS memory normal operation | JP7 | pins 2 & 3 |
| | | | closed |
|---+--------------------------------+--------+--------------|
| | CMOS memory clear | JP7 | pins 1 & 2 |
| | | | closed |
|---+--------------------------------+--------+--------------|
| » | Monitor type select color | JP9 | Closed |
|---+--------------------------------+--------+--------------|
| | Monitor type select monochrome | JP9 | Open |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|------------------+--------------------+--------------------|
| 1MB | (4) 256K x 9 | NONE |
|------------------+--------------------+--------------------|
| 2MB | (4) 256K x 9 | (4) 256K x 9 |
|------------------+--------------------+--------------------|
| 4MB | (4) 1M x 9 | NONE |
|------------------+--------------------+--------------------|
| 5MB | (4) 256K x 9 | (4) 1M x 9 |
|------------------+--------------------+--------------------|
| 8MB | (4) 1M x 9 | (4) 1M x 9 |
|------------------+--------------------+--------------------|
| 16MB | (4) 4M x 9 | NONE |
|------------------+--------------------+--------------------|
| 20MB | (4) 1M x 9 | (4) 4M x 9 |
|------------------+--------------------+--------------------|
| 32MB | (4) 4M x 9 | (4) 4M x 9 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 | TAG |
|------------+---------------+---------------+---------------|
| 32KB | (4) 8K x 8 | NONE | (2) 16K x 4 |
|------------+---------------+---------------+---------------|
| 64KB | (4) 8K x 8 | (4) 8K x 8 | (2) 16K x 4 |
|------------+---------------+---------------+---------------|
| 128KB | (4) 32K x 8 | NONE | (2) 16K x 4 |
|------------+---------------+---------------+---------------|
| 256KB | (4) 32K x 8 | (4) 32K x 8 | (2) 16K x 4 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE JUMPER CONFIGURATION |
|------------------------------------------------------------|
| Size | JP1 | JP2 | JP3 | JP4 | JP5 | JP6 |
|--------+--------+--------+--------+--------+-------+-------|
| 32KB | Open | 1 & 2 | 2 & 3 | 2 & 3 | 1 & 2 | 1 & 2 |
|--------+--------+--------+--------+--------+-------+-------|
| 64KB | Open | 2 & 3 | 1 & 2 | 2 & 3 | 1 & 2 | 1 & 2 |
|--------+--------+--------+--------+--------+-------+-------|
| 128KB | Closed | 2 & 3 | 1 & 2 | 2 & 3 | 2 & 3 | 1 & 2 |
|--------+--------+--------+--------+--------+-------+-------|
| 256KB | Closed | 2 & 3 | 1 & 2 | 1 & 2 | 2 & 3 | 2 & 3 |
|------------------------------------------------------------|
| Note: Pins designated should be in the closed position. |
+------------------------------------------------------------+
