# ADVANCED LOGIC RESEARCH, INC.
FLYER 32LCT
Processor 80486SX/80486DX/80486DX2
Processor Speed 25/33/50MHz
Chip Set C & T
Max. Onboard 64MB
DRAM
Cache 256KB
BIOS Phoenix
Dimensions 335mm x 311mm
I/O Options Floppy drive interface, IDE
interface,parallel port, PS/2 mouse port,
proprietary CPU module slot, proprietary
cache module slot,serial ports (2), VGA port
NPU Options None
IMG IMG 1
+------------------------------------------------------------+

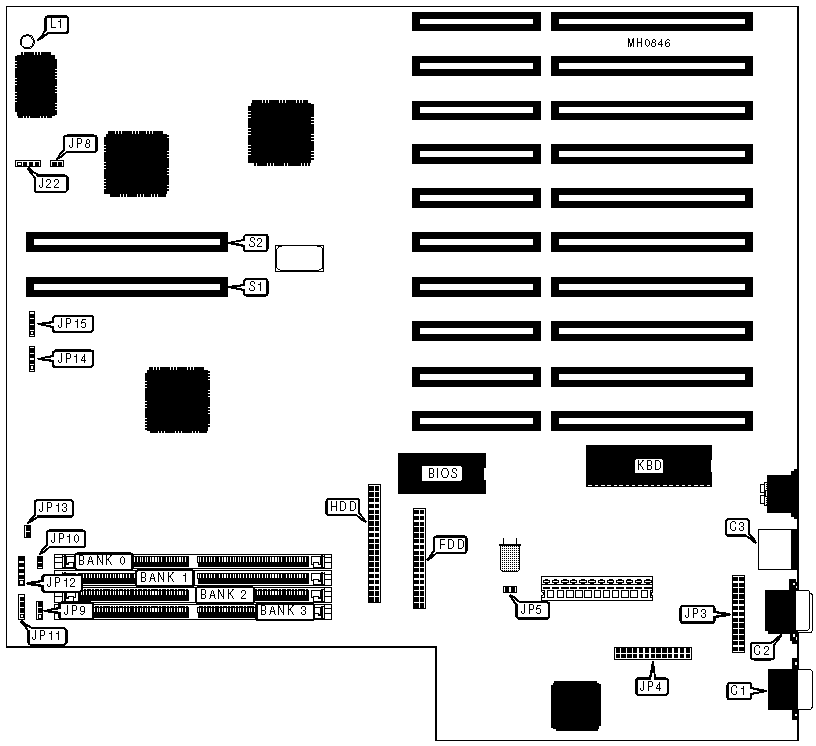

| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|--------------------+----------+-----------------+----------|
| VGA port | C1 | Turbo LED | JP10 |
|--------------------+----------+-----------------+----------|
| Serial ports | C2 | IDE interface | JP11 |
| (COM1&COM2) | | LED | |
|--------------------+----------+-----------------+----------|
| PS/2 bus mouse | C3 | Power LED & | JP12 |
| | | keylock | |
|--------------------+----------+-----------------+----------|
| Floppy drive | FDD | Reset switch | JP13 |
| interface | | | |
|--------------------+----------+-----------------+----------|
| IDE interface | HDD | Cooling fan | JP14 |
| | | connector | |
|--------------------+----------+-----------------+----------|
| External battery | J22 | Speaker | JP15 |
|--------------------+----------+-----------------+----------|
| Parallel port | JP3 | On-board power | L1 |
| | | LED | |
|--------------------+----------+-----------------+----------|
| VGA pass-through | JP4 | Proprietary CPU | S1 |
| header | | module | |
|--------------------+----------+-----------------+----------|
| Turbo switch | JP9 | Proprietary | S2 |
| | | cache module | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Jumper | Position |
|------------------------------------+----------+------------|
| » | VGA port enabled | JP5 | Closed |
|---+--------------------------------+----------+------------|
| | VGA port disabled | JP5 | Open |
|---+--------------------------------+----------+------------|
| » | CMOS memory normal operation | JP8 | Open |
|---+--------------------------------+----------+------------|
| | CMOS memory clear | JP8 | Closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 | Bank 2 | Bank 3 |
|------+-------------+-------------+------------+------------|
| 1MB | (1) 256K x | NONE | NONE | NONE |
| | 36 | | | |
|------+-------------+-------------+------------+------------|
| 2MB | (1) 256K x | (1) 256K x | NONE | NONE |
| | 36 | 36 | | |
|------+-------------+-------------+------------+------------|
| 3MB | (1) 256K x | (1) 256K x | (1) 256K x | NONE |
| | 36 | 36 | 36 | |
|------+-------------+-------------+------------+------------|
| 4MB | (1) 256K x | (1) 256K x | (1) 256K x | (1) 256K x |
| | 36 | 36 | 36 | 36 |
|------+-------------+-------------+------------+------------|
| 4MB | (1) 1M x 36 | NONE | NONE | NONE |
|------+-------------+-------------+------------+------------|
| 5MB | (1) 256K x | (1) 1M x 36 | NONE | NONE |
| | 36 | | | |
|------+-------------+-------------+------------+------------|
| 6MB | (1) 256K x | (1) 256K x | (1) 1M x | NONE |
| | 36 | 36 | 36 | |
|------+-------------+-------------+------------+------------|
| 8MB | (1) 1M x 36 | (1) 1M x 36 | NONE | NONE |
|------+-------------+-------------+------------+------------|
| 9MB | (1) 256K x | (1) 1M x 36 | (1) 1M x | NONE |
| | 36 | | 36 | |
|------+-------------+-------------+------------+------------|
| 10MB | (1) 256K x | (1) 256K x | (1) 1M x | (1) 1M x |
| | 36 | 36 | 36 | 36 |
|------+-------------+-------------+------------+------------|
| 12MB | (1) 1M x 36 | (1) 1M x 36 | (1) 1M x | NONE |
| | | | 36 | |
|------+-------------+-------------+------------+------------|
| 16MB | (1) 1M x 36 | (1) 1M x 36 | (1) 1M x | (1) 1M x |
| | | | 36 | 36 |
|------+-------------+-------------+------------+------------|
| 16MB | (1) 4M x 36 | NONE | NONE | NONE |
|------+-------------+-------------+------------+------------|
| 20MB | (1) 1M x 36 | (1) 4M x 36 | NONE | NONE |
|------+-------------+-------------+------------+------------|
| 24MB | (1) 1M x 36 | (1) 1M x 36 | (1) 4M x | NONE |
| | | | 36 | |
|------+-------------+-------------+------------+------------|
| 32MB | (1) 4M x 36 | (1) 4M x 36 | NONE | NONE |
|------+-------------+-------------+------------+------------|
| 36MB | (1) 1M x 36 | (1) 4M x 36 | (1) 4M x | NONE |
| | | | 36 | |
|------+-------------+-------------+------------+------------|
| 40MB | (1) 1M x 36 | (1) 1M x 36 | (1) 4M x | (1) 4M x |
| | | | 36 | 36 |
|------+-------------+-------------+------------+------------|
| 48MB | (1) 4M x 36 | (1) 4M x 36 | (1) 4M x | NONE |
| | | | 36 | |
|------+-------------+-------------+------------+------------|
| 64MB | (1) 4M x 36 | (1) 4M x 36 | (1) 4M x | (1) 4M x |
| | | | 36 | 36 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE CONFIGURATION |
|------------------------------------------------------------|
| Size | Location |
|----------------------------+-------------------------------|
| 256KB | Proprietary cache module (S2) |
+------------------------------------------------------------+
