       # BEK-TRONIC TECHNOLOGY, INC.

          BEK-3603

          Processor             80386SX
          Processor Speed       25/33MHz
          Chip Set              ALI
          Max. Onboard DRAM     16MB
          Cache                 None
          BIOS                  AMI
          Dimensions            220mm x 170mm
          I/O Options           None
          NPU Options           80387SX

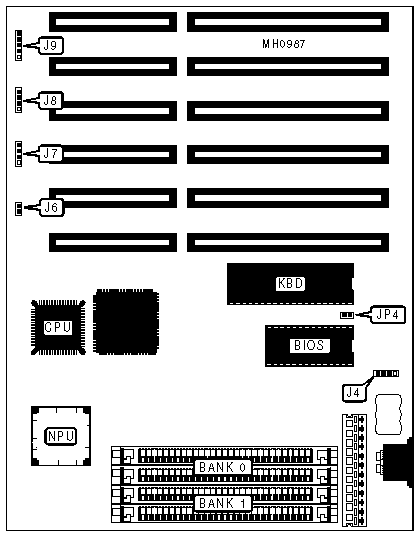

   IMG IMG 1


          +------------------------------------------------------------+
          |                        CONNECTIONS                         |
          |------------------------------------------------------------|
          | Purpose          | Location | Purpose           | Location |
          |------------------+----------+-------------------+----------|
          | External battery |    J4    | Turbo switch &    |    J8    |
          |                  |          | Turbo LED         |          |
          |------------------+----------+-------------------+----------|
          | Reset switch     |    J6    | Power LED &       |    J9    |
          |                  |          | keylock           |          |
          |------------------+----------+-------------------+----------|
          | Speaker          |    J7    |                   |          |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                 USER CONFIGURABLE SETTINGS                 |
          |------------------------------------------------------------|
          |               Function               | Jumper  | Position  |
          |--------------------------------------+---------+-----------|
          | » | Monitor type select color        |   JP4   |  Closed   |
          |---+----------------------------------+---------+-----------|
          |   | Monitor type select monochrome   |   JP4   |   Open    |
          |------------------------------------------------------------|
          | Note:These setting are unverified.                         |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                     DRAM CONFIGURATION                     |
          |------------------------------------------------------------|
          |       Size       |       Bank 0       |       Bank 1       |
          |------------------+--------------------+--------------------|
          |       1MB        |    (2) 256K x 9    |    (2) 256K x 9    |
          |------------------+--------------------+--------------------|
          |       2MB        |     (2) 1M x 9     |        NONE        |
          |------------------+--------------------+--------------------|
          |       4MB        |     (2) 1M x 9     |     (2) 1M x 9     |
          |------------------+--------------------+--------------------|
          |       8MB        |     (2) 4M x 9     |        NONE        |
          |------------------+--------------------+--------------------|
          |       16MB       |     (2) 4M x 9     |     (2) 4M x 9     |
          +------------------------------------------------------------+
