# BEK-TRONIC TECHNOLOGY, INC.
BEK-4801/486WB
Processor 80486DX
Processor Speed 33MHz
Chip Set OPTI
Max. Onboard DRAM 64MB
Cache 64/256KB
BIOS AMI
Dimensions 330mm x 218mm
I/O Options None
NPU Options 4167

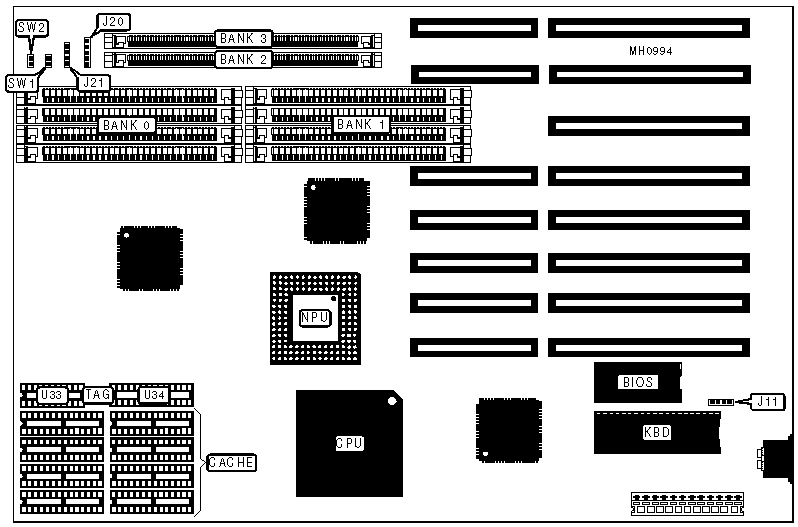

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|---------------------+----------+----------------+----------|
| External battery | J11 | Turbo LED | SW1 |
|---------------------+----------+----------------+----------|
| Power LED & keylock | J20 | Reset switch | SW2 |
|---------------------+----------+----------------+----------|
| Speaker | J21 | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 | Bank 2 | Bank 3 |
|------+-------------+-------------+------------+------------|
| 1MB | (4) 256K x | NONE | NONE | NONE |
| | 9 | | | |
|------+-------------+-------------+------------+------------|
| 2MB | (4) 256K x | (4) 256K x | NONE | NONE |
| | 9 | 9 | | |
|------+-------------+-------------+------------+------------|
| 4MB | (4) 1M x 9 | NONE | NONE | NONE |
|------+-------------+-------------+------------+------------|
| 5MB | (4) 256K x | (4) 1 M x 9 | NONE | NONE |
| | 9 | | | |
|------+-------------+-------------+------------+------------|
| 6MB | (4) 256K x | (4) 256K x | (1) 1M x | NONE |
| | 9 | 9 | 36 | |
|------+-------------+-------------+------------+------------|
| 8MB | (4) 1M x 9 | (4) 1M x 9 | NONE | NONE |
|------+-------------+-------------+------------+------------|
| 9MB | (4) 256K x | (4) 1M x 9 | (1) 1M x | NONE |
| | 9 | | 36 | |
|------+-------------+-------------+------------+------------|
| 10MB | (4) 256K x | (4) 256K x | (1) 1M x | (1) 1M x |
| | 9 | 9 | 36 | 36 |
|------+-------------+-------------+------------+------------|
| 12MB | (4) 1M x 9 | (4) 1M x 9 | (1) 1M x | NONE |
| | | | 36 | |
|------+-------------+-------------+------------+------------|
| 13MB | (4) 256K x | (4) 1M x 9 | (1) 1M x | (1) 1M x |
| | 9 | | 36 | 36 |
|------+-------------+-------------+------------+------------|
| 16MB | (4) 1M x 9 | (4) 1M x 9 | (1) 1M x | (1) 1M x |
| | | | 36 | 36 |
|------+-------------+-------------+------------+------------|
| 16MB | (4) 4M x 9 | NONE | NONE | NONE |
|------+-------------+-------------+------------+------------|
| 20MB | (4) 1M x 9 | (4) 4M x 9 | NONE | NONE |
|------+-------------+-------------+------------+------------|
| 24MB | (4) 1M x 9 | (4) 1M x 9 | (1) 4M x | NONE |
| | | | 36 | |
|------+-------------+-------------+------------+------------|
| 28MB | (4) 1M x 9 | (4) 1M x 9 | (1) 1M x | (1) 4M x |
| | | | 36 | 36 |
|------+-------------+-------------+------------+------------|
| 32MB | (4) 4M x 9 | (4) 4M x 9 | NONE | NONE |
|------+-------------+-------------+------------+------------|
| 36MB | (4) 1M x 9 | (4) 4M x 9 | (1) 4M x | NONE |
| | | | 36 | |
|------+-------------+-------------+------------+------------|
| 40MB | (4) 1M x 9 | (4) 4M x 9 | (1) 4M x | (1) 1M x |
| | | | 36 | 36 |
|------+-------------+-------------+------------+------------|
| 46MB | (4) 4M x 9 | (4) 4M x 9 | (1) 4M x | NONE |
| | | | 36 | |
|------+-------------+-------------+------------+------------|
| 52MB | (4) 1M x 9 | (4) 4M x 9 | (1) 4M x | (1) 4M x |
| | | | 36 | 36 |
|------+-------------+-------------+------------+------------|
| 64MB | (4) 4M x 9 | (4) 4M x 9 | (1) 4M x | (1) 4M x |
| | | | 36 | 36 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | TAG (U33) | TAG (U34) |
|------------+---------------+---------------+---------------|
| 64KB | (8) 8K x 8 | (1) 8K x 8 | (1) 64K x 1 |
|------------+---------------+---------------+---------------|
| 256KB | (8) 32K x 8 | (1) 32K x 8 | (1) 64K x 1 |
|------------------------------------------------------------|
| Note : The location of U33 is unidentified. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE JUMPER CONFIGURATION |
|------------------------------------------------------------|
| Size | JP8 | JP9 | JP10 | JP11 |
|-----------+------------+-----------+-----------+-----------|
| 64KB | Open | Open | Open | Open |
|-----------+------------+-----------+-----------+-----------|
| 256KB | Closed | Closed | Closed | Closed |
|------------------------------------------------------------|
| Note:The location of the cache jumpers are unidentified. |
+------------------------------------------------------------+
