# SILICON STAR INTERNATIONAL, INC.
486 EISA-AE4
Processor 80486SX/80487SX/80486DX/80486DX2
Processor Speed 22/25/33/50(internal)/50/66(internal)MHz
Chip Set SIS
Max. Onboard DRAM 128MB
Cache 64/128/256KB
BIOS AMI
Dimensions 330mm x 218mm
I/O Options None
NPU Options 4167

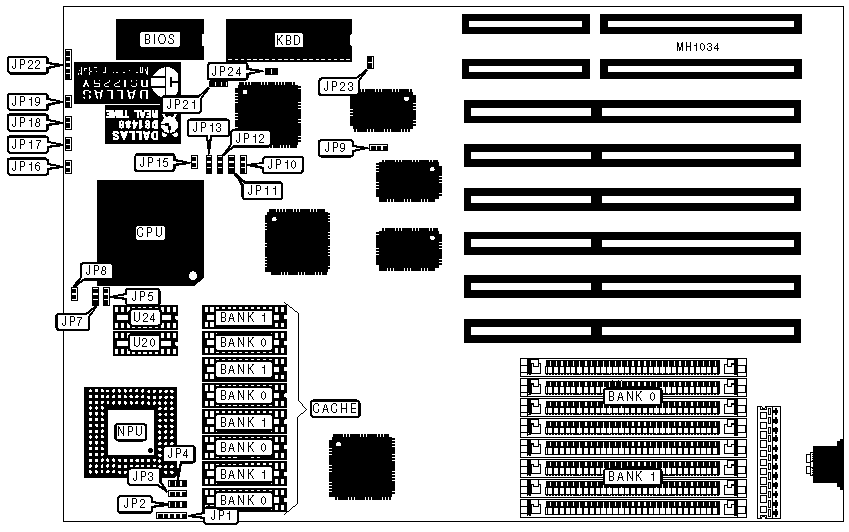

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|----------------+----------+---------------------+----------|
| Power LED | JP8 | Reset switch | JP18 |
|----------------+----------+---------------------+----------|
| Turbo LED | JP16 | Speaker | JP19 |
|----------------+----------+---------------------+----------|
| Turbo switch | JP17 | Power LED & keylock | JP22 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Jumper | Position |
|--------------------------------------+--------+------------|
| » | Factory configured - do not | JP3 | Open |
| | alter | | |
|---+----------------------------------+--------+------------|
| » | Factory configured - do not | JP4 | Open |
| | alter | | |
|---+----------------------------------+--------+------------|
| » | Factory configured - do not | JP9 | pins 1 & 2 |
| | alter | | closed |
|---+----------------------------------+--------+------------|
| » | Factory configured - do not | JP10 | pins 1 & 2 |
| | alter | | closed |
|---+----------------------------------+--------+------------|
| » | Factory configured - do not | JP11 | pins 1 & 2 |
| | alter | | closed |
|---+----------------------------------+--------+------------|
| » | Factory configured - do not | JP21 | pins 1 & 2 |
| | alter | | closed |
|---+----------------------------------+--------+------------|
| » | Factory configured - do not | JP23 | Closed |
| | alter | | |
|---+----------------------------------+--------+------------|
| » | Monitor type select color | JP24 | Open |
|---+----------------------------------+--------+------------|
| | Monitor type select monochrome | JP24 | Closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|------------------+--------------------+--------------------|
| 1MB | (4) 256K x 9 | NONE |
|------------------+--------------------+--------------------|
| 2MB | (4) 256K x 9 | (4) 256K x 9 |
|------------------+--------------------+--------------------|
| 4MB | (4) 1M x 9 | NONE |
|------------------+--------------------+--------------------|
| 8MB | (4) 1M x 9 | (4) 1M x 9 |
|------------------+--------------------+--------------------|
| 16MB | (4) 4M x 9 | NONE |
|------------------+--------------------+--------------------|
| 32MB | (4) 4M x 9 | (4) 4M x 9 |
|------------------+--------------------+--------------------|
| 64MB | (4) 16M x 9 | NONE |
|------------------+--------------------+--------------------|
| 128MB | (4) 16M x 9 | (4) 16M x 9 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 | TAG (U20 and U24) |
|---------+---------------+--------------+-------------------|
| 64KB | (4) 8K x 8 | (4) 8K x 8 | (2) 16K x 4 |
|---------+---------------+--------------+-------------------|
| 128KB | (4) 32K x 8 | NONE | (2) 16K x 4 |
|---------+---------------+--------------+-------------------|
| 256KB | (4) 32K x 8 | (4) 32K x 8 | (2) 16K x 4 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE JUMPER CONFIGURATION |
|------------------------------------------------------------|
| Size | JP1 | JP2 | JP12 | JP13 |
|-------+-------------+------------+------------+------------|
| 64KB | pins 2 & 3 | pins 1 & 2 | pins 1 & 2 | pins 1 & 2 |
| | closed | closed | closed | closed |
|-------+-------------+------------+------------+------------|
| 128KB | pins 1 & 2 | pins 2 & 3 | pins 1 & 2 | pins 2 & 3 |
| | closed | closed | closed | closed |
|-------+-------------+------------+------------+------------|
| 256KB | pins 4 & 5 | pins 2 & 3 | pins 2 & 3 | pins 2 & 3 |
| | closed | closed | closed | closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU TYPE CONFIGURATION |
|------------------------------------------------------------|
| Type | JP5 | JP7 | JP15 |
|-----------+-------------------+-------------------+--------|
| 80486SX | Open | pins 2 & 3 closed | Open |
|-----------+-------------------+-------------------+--------|
| 80487SX | pins 2 & 3 closed | pins 1 & 2 closed | Closed |
|-----------+-------------------+-------------------+--------|
| 80486DX | pins 1 & 2 closed | pins 1 & 2 closed | Closed |
|-----------+-------------------+-------------------+--------|
| 80486DX2 | pins 1 & 2 closed | pins 1 & 2 closed | Closed |
+------------------------------------------------------------+
