# ACER, INC.
EISA 486LXE (MODEL L433S)
Processor 80486SX/80487SX/80486DX/ODP486SX/80486DX2
Processor Speed 25/33/50(internal)/50/66(internal)MHz
Chip Set SIS
Max. Onboard DRAM 128MB
SRAM Cache 128/256KB
BIOS Acer
Dimensions 220mm x 260mm
I/O Options 32-bit VESA card slot
NPU Options 4167

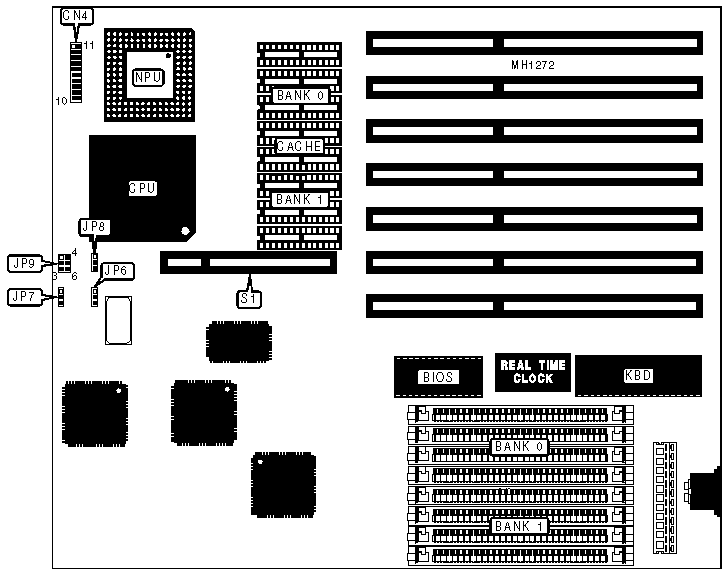

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|-------------------+----------+------------------+----------|
| Power LED & | CN4/1 - | Turbo switch | CN4/15 - |
| keylock | 5 | | 17 |
|-------------------+----------+------------------+----------|
| Speaker | CN4/7 - | Reset switch | CN4/19 & |
| | 10 | | 20 |
|-------------------+----------+------------------+----------|
| Turbo LED | CN4/12 & | 32-bit VESA card | S1 |
| | 13 | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Jumper | Position |
|-----------------------------------+--------+---------------|
| ยป | VESA bus wait states select 0 | JP8 | pins 2 & 3 |
| | | | closed |
|---+-------------------------------+--------+---------------|
| | VESA bus wait states select 1 | JP8 | pins 1 & 2 |
| | | | closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|-----------+------------------------+-----------------------|
| 1MB | (4) 256K x 9 | NONE |
|-----------+------------------------+-----------------------|
| 2MB | (4) 256K x 9 | (4) 256K x 9 |
|-----------+------------------------+-----------------------|
| 4MB | (4) 1M x 9 | NONE |
|-----------+------------------------+-----------------------|
| 5MB | (4) 256K x 9 | (4) 1M x 9 |
|-----------+------------------------+-----------------------|
| 8MB | (4) 1M x 9 | (4) 1M x 9 |
|-----------+------------------------+-----------------------|
| 16MB | (4) 4M x 9 | NONE |
|-----------+------------------------+-----------------------|
| 20MB | (4) 1M x 9 | (4) 4M x 9 |
|-----------+------------------------+-----------------------|
| 32MB | (4) 4M x 9 | (4) 4M x 9 |
|-----------+------------------------+-----------------------|
| 64MB | (4) 16M x 9 | NONE |
|-----------+------------------------+-----------------------|
| 128MB | (4) 16M x 9 | (4) 16M x 9 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU SPEED CONFIGURATION FOR CH9001 SYSTEM CLOCK CHIP |
|------------------------------------------------------------|
| CPU Speed | JP9 |
|----------------------------+-------------------------------|
| 33/66(internal)MHz | pins 1 & 4 closed |
|----------------------------+-------------------------------|
| 25/50(internal)MHz | pins 3 & 6 closed |
|----------------------------+-------------------------------|
| 40MHz | pins 1 & 2 and 4 & 5 closed |
|----------------------------+-------------------------------|
| 50MHz | pins 2 & 5 closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| SRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Cache SRAM | Location | Jumpers JP6 & JP7 |
|---------+---------------+--------------+-------------------|
| 128KB | (4) 32K x 8 | Bank 0 | pins 2 & 3 closed |
|---------+---------------+--------------+-------------------|
| 256KB | (8) 32K x 8 | Banks 0 & 1 | pins 1 & 2 closed |
+------------------------------------------------------------+
