# ACER, INC.
386-AS
Processor 80386SX/CX486SLC
Processor Speed 33MHz
Chip Set ALI
Max. Onboard DRAM 16MB
SRAM Cache None
BIOS AMI
Dimensions 178mm x 218mm
I/O Options None
NPU Options 80387SX

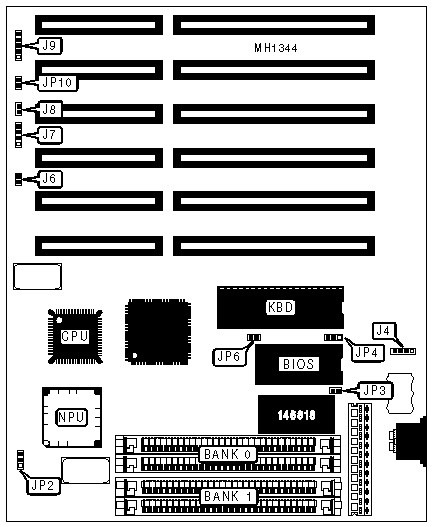

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|------------------+----------+-------------------+----------|
| External battery | J4 | Turbo LED | J8 |
|------------------+----------+-------------------+----------|
| Reset switch | J6 | Power LED & | J9 |
| | | keylock | |
|------------------+----------+-------------------+----------|
| Speaker | J7 | Turbo switch | JP10 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Jumper | Position |
|--------------------------------------+--------+------------|
| » | NPU mode select synchronous with | JP2 | pins 1 & 2 |
| | CPU | | closed |
|---+----------------------------------+--------+------------|
| | NPU mode select asynchronous | JP2 | pins 2 & 3 |
| | with CPU | | closed |
|---+----------------------------------+--------+------------|
| » | Factory configured - do not | JP3 | open |
| | alter | | |
|---+----------------------------------+--------+------------|
| » | Monitor type select color | JP4 | pins 1 & 2 |
| | | | closed |
|---+----------------------------------+--------+------------|
| | Monitor type select monochrome | JP4 | pins 2 & 3 |
| | | | closed |
|---+----------------------------------+--------+------------|
| » | Parity check enabled | JP6 | closed |
|---+----------------------------------+--------+------------|
| | Parity check disabled | JP6 | open |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|------------------+--------------------+--------------------|
| 512KB | (2) 256K x 9 | NONE |
|------------------+--------------------+--------------------|
| 1MB | (2) 256K x 9 | (2) 256K x 9 |
|------------------+--------------------+--------------------|
| 2MB | (2) 1M x 9 | NONE |
|------------------+--------------------+--------------------|
| 4MB | (2) 1M x 9 | (2) 1M x 9 |
|------------------+--------------------+--------------------|
| 8MB | (2) 4M x 9 | NONE |
|------------------+--------------------+--------------------|
| 16MB | (2) 4M x 9 | (2) 4M x 9 |
+------------------------------------------------------------+
