# BIOSTAR MICROTECH INTERNATIONAL CORPORATION
1333UCG/1340UCG/1333UCQ/1340UCQ
Processor 80386DX/CX486DLC
Processor Speed 33/40MHz
Chip Set Biostar
Max. Onboard DRAM 32MB
Cache 32/128KB
BIOS AMI
Dimensions 330mm x 218mm
I/O Options None
NPU Options 80387DX/CX87DLC

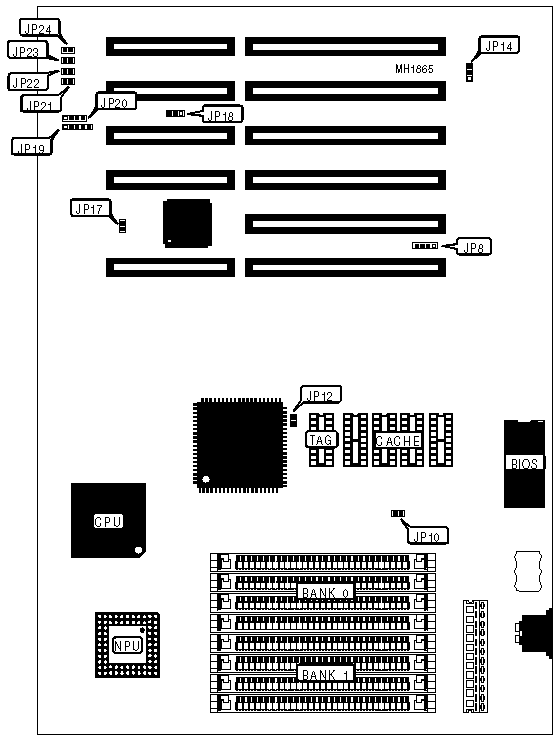

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|---------------------+----------+----------------+----------|
| Power LED & keylock | JP19 | Reset switch | JP22 |
|---------------------+----------+----------------+----------|
| Speaker | JP20 | Turbo switch | JP23 |
|---------------------+----------+----------------+----------|
| Turbo LED | JP21 | 5 volt ground | JP24 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Jumper | Position |
|--------------------------------------+--------+------------|
| » | CMOS memory normal operation | JP8 | pins 2 & 3 |
| | (Internal Battery) | | closed |
|---+----------------------------------+--------+------------|
| | CMOS memory normal operation | JP8 | pins 1 & 4 |
| | (External Battery) | | closed |
|---+----------------------------------+--------+------------|
| | CMOS memory clear | JP8 | pins 3 & 4 |
| | | | closed |
|---+----------------------------------+--------+------------|
| » | Monitor type select color | JP14 | pins 2 & 3 |
| | | | closed |
|---+----------------------------------+--------+------------|
| | Monitor type select monochrome | JP14 | pins 1 & 4 |
| | | | closed |
|---+----------------------------------+--------+------------|
| » | CPU speed select 66Mhz | JP17 | Closed |
|---+----------------------------------+--------+------------|
| | CPU speed select 80Mhz | JP17 | Open |
|---+----------------------------------+--------+------------|
| » | NPU enabled | JP18 | pins 1 & 4 |
| | | | closed |
|---+----------------------------------+--------+------------|
| | NPU disabled | JP18 | pins 2 & 3 |
| | | | closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Tag |
|------------------+--------------------+--------------------|
| 32KB | (4) 8K x 8 | (1) 8K x 8 |
|------------------+--------------------+--------------------|
| 128KB | (4) 32K x 8 | (1) 8K x 8 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE CONFIGURATION |
|------------------------------------------------------------|
| Size | JP10 | JP12 |
|-------------------+--------------------+-------------------|
| 32KB | Open | Open |
|-------------------+--------------------+-------------------|
| 128KB | Closed | Closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|------------------+--------------------+--------------------|
| 1MB | (4) 256K x 9 | NONE |
|------------------+--------------------+--------------------|
| 2MB | (4) 256K x 9 | (4) 256K x 9 |
|------------------+--------------------+--------------------|
| 4MB | (4) 1M x 9 | NONE |
|------------------+--------------------+--------------------|
| 5MB | (4) 1M x 9 | (4) 256K x 9 |
|------------------+--------------------+--------------------|
| 8MB | (4) 1M x 9 | (4) 1M x 9 |
|------------------+--------------------+--------------------|
| 16MB | (4) 4M x 9 | NONE |
|------------------+--------------------+--------------------|
| 17MB | (4) 4M x 9 | (4) 256K x 9 |
|------------------+--------------------+--------------------|
| 20MB | (4) 4M x 9 | (4) 1M x 9 |
|------------------+--------------------+--------------------|
| 32MB | (4) 4M x 9 | (4) 4M x 9 |
+------------------------------------------------------------+
