# ASUS COMPUTER INTERNATIONAL
EISA-486A
Processor 80486DX
Processor Speed 50MHz
Chip Set Intel
Max. Onboard DRAM 64MB
Cache 64/128/256KB
BIOS Award
Dimensions 330mm x 218mm
I/O Options None
NPU Options 4167

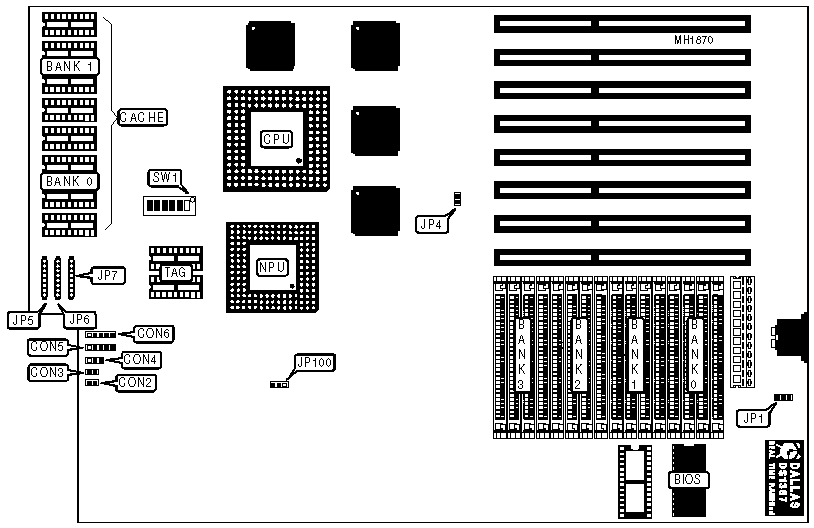

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|------------------+----------+-------------------+----------|
| Reset switch | CON2 | Speaker | CON5 |
|------------------+----------+-------------------+----------|
| Turbo switch | CON3 | Keylock & LED | CON6 |
|------------------+----------+-------------------+----------|
| Turbo LED | CON4 | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Jumper | Position |
|------------------------------------+--------+--------------|
| » | Monitor type select monochrome | JP1 | pins 1 & 2 |
| | | | closed |
|---+--------------------------------+--------+--------------|
| | Monitor type select color | JP1 | pins 2 & 3 |
| | | | closed |
|---+--------------------------------+--------+--------------|
| » | CPU speed select 50MHz | JP4 | Open |
|---+--------------------------------+--------+--------------|
| » | NPU asynchronous | JP100 | pins 2 & 3 |
| | | | closed |
|---+--------------------------------+--------+--------------|
| | NPU synchronous with CPU | JP100 | pins 1 & 2 |
| | | | closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU TYPE |
|------------------------------------------------------------|
| Type | SW1/1 | SW1/2 | SW1/3 | SW1/4 | SW1/5 | SW1/6 |
|----------+--------+--------+-------+-------+-------+-------|
|»|80486DX | On | On | On | Off | Off | Off |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 | TAG |
|------------+---------------+---------------+---------------|
| 64KB | (4) 8K x 8 | (4) 8K x 8 | (2) 16K x 4 |
|------------+---------------+---------------+---------------|
| 128KB | (4) 32K x 8 | NONE | (2) 64K x 4 |
|------------+---------------+---------------+---------------|
| 256KB | (4) 32K x 8 | (4) 32K x 8 | (2) 64K x 4 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE SIZE |
|------------------------------------------------------------|
| Size | JP5 | JP6 | JP7 |
|------------+---------------+---------------+---------------|
| 64KB | Not installed | Not installed | Installed |
|------------+---------------+---------------+---------------|
| 128KB | Not installed | Installed | Not installed |
|------------+---------------+---------------+---------------|
| 256KB | Installed | Not installed | Not installed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 | Bank 2 | Bank 3 |
|------+-------------+-------------+------------+------------|
| 1MB | (4) 256K x | NONE | NONE | NONE |
| | 9 | | | |
|------+-------------+-------------+------------+------------|
| 2MB | (4) 256K x | (4) 256K x | NONE | NONE |
| | 9 | 9 | | |
|------+-------------+-------------+------------+------------|
| 3MB | (4) 256K x | (4) 256K x | (4) 256K x | NONE |
| | 9 | 9 | 9 | |
|------+-------------+-------------+------------+------------|
| 4MB | (4) 256K x | (4) 256K x | (4) 256K x | (4) 256K x |
| | 9 | 9 | 9 | 9 |
|------+-------------+-------------+------------+------------|
| 4MB | (4) 1M x 9 | NONE | NONE | NONE |
|------+-------------+-------------+------------+------------|
| 8MB | (4) 1M x 9 | (4) 1M x 9 | NONE | NONE |
|------+-------------+-------------+------------+------------|
| 12MB | (4) 1M x 9 | (4) 1M x 9 | (4) 1M x 9 | NONE |
|------+-------------+-------------+------------+------------|
| 16MB | (4) 1M x 9 | (4) 1M x 9 | (4) 1M x 9 | (4) 1M x 9 |
|------+-------------+-------------+------------+------------|
| 16MB | (4) 4M x 9 | NONE | NONE | NONE |
|------+-------------+-------------+------------+------------|
| 32MB | (4) 4M x 9 | (4) 4M x 9 | NONE | NONE |
|------+-------------+-------------+------------+------------|
| 48MB | (4) 4M x 9 | (4) 4M x 9 | (4) 4M x 9 | NONE |
|------+-------------+-------------+------------+------------|
| 64MB | (4) 4M x 9 | (4) 4M x 9 | (4) 4M x 9 | (4) 4M x 9 |
+------------------------------------------------------------+
